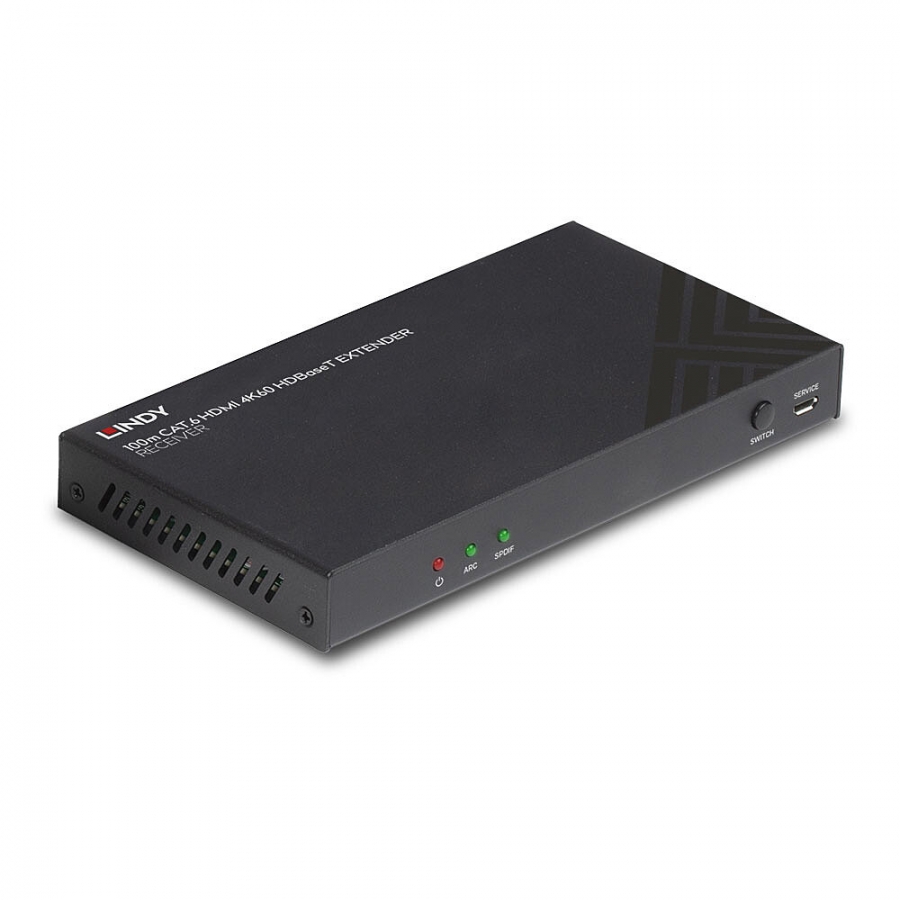

Lindy 100m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Receiver

Lindy

LIN38342

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0
  • Supported Bandwidth: 18 Gbps
  • Maximum Distance:

70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit

100m (328.08ft) - 1920x1080@60Hz

  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • EDID Pass Through: Pass-through
  • Supported Audio: HDMI Audio Pass-through
  • Separate Audio Ports: TosLink (Optical), 3.5mm
  • IR Support: 20 - 60KHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS2310TX-A1
  • Special Features: PoC (Power over Cat.6), ARC Support



Connectors

  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI Type A (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in)
  • Housing Material: Metal
  • Net Weight: 0.38kg (0.84lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature:  -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x70x130mm (8.66x2.76x5.12in)
  • Gross Weight: 0.80kg (1.76lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDBaseT HDMI Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 2 x Mounting Ears & 4 x Screws
  • 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38342
  • EAN: 4002888383424
