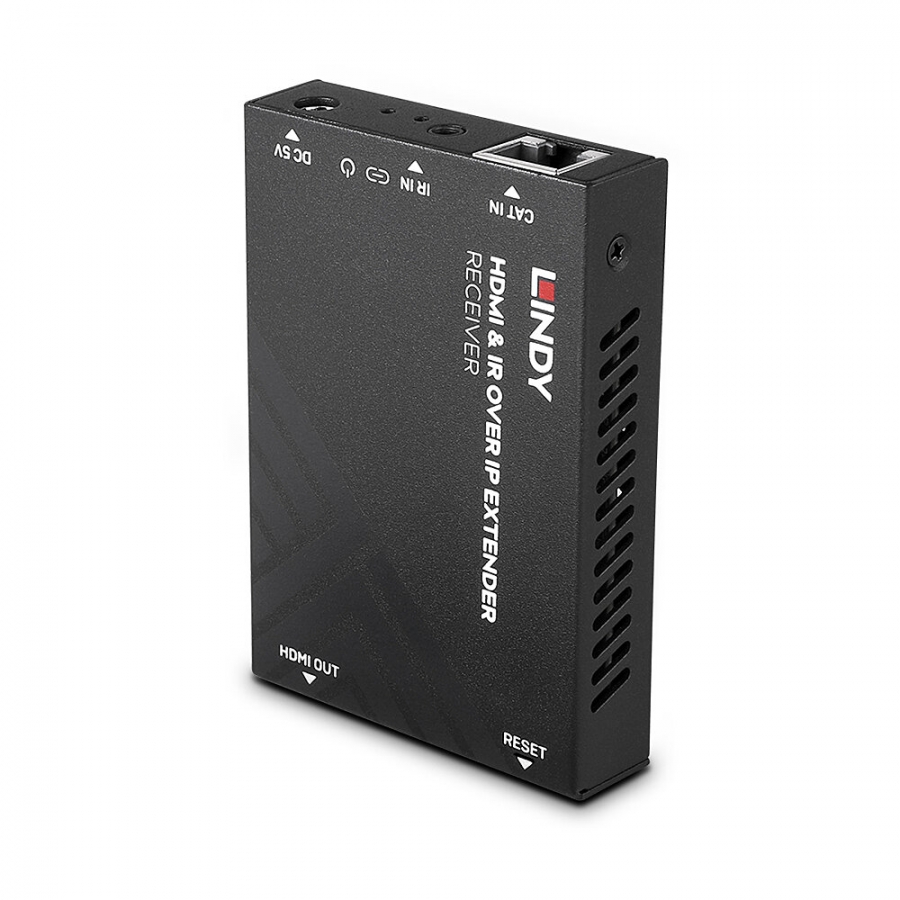

Lindy HDMI & IR over IP Extender - Receiver

Lindy

LIN38399

New

Specifications



  • AV Interface: HDMI
  • Interface Standard: HDMI 1.3
  • Supported Bandwidth: 6.75 Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.4
  • EDID Pass Through: -
  • Supported Audio: 2 Channel PCM
  • Separate Audio Ports: -
  • IR Support: 20-60 kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: IP (H.265 video compression)
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: SSD203D
  • Special Features: -



Connectors



  • Transmitter Input: -
  • Transmitter Output: -
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Ouput: HDMI (Female)
  • Bidirectonal Ports: -
  • Power: 5.5/2.1mm DC socket



Physical Properties



  • Dimensions WxHxD: 88x61.2x16.5mm (3.46x2.41x0.65in)
  • Housing Material: Metal
  • Nett Weight: 0.236kg (0.52lb)
  • Operating Temperature: -10°C - 50°C (14°F -122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous



  • Packaging Type: Carton Box
  • Packaging Dimensions: 146x105x65mm (5.75x4.13x2.56in)
  • Gross Weight: 0.357kg (0.79lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents



  • Receiver unit
  • IR receiver cable, 1.5m
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual



Purchasing Information



  • No. 38399
  • EAN: 4002888383998
