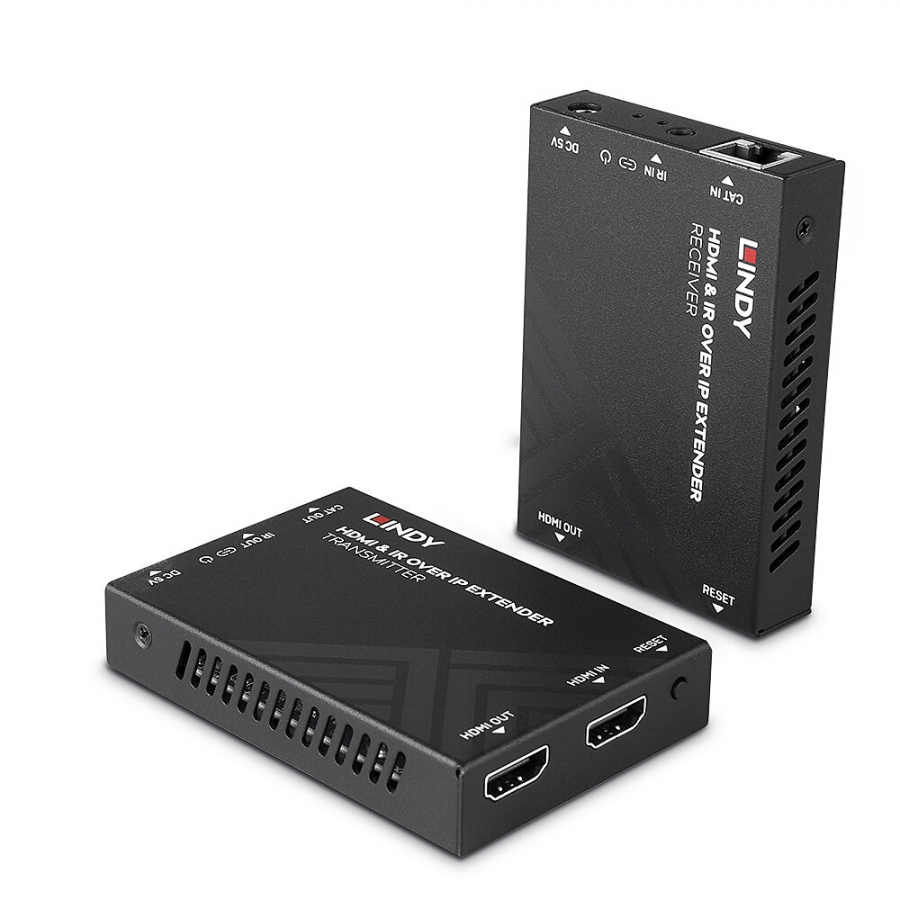

Lindy HDMI & IR over IP Extender

Lindy

LIN38398

New

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 1.3
  • Supported Bandwidth: 6.75 Gbps
  • Maximum Distance: 150m (492.12ft)
  • Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit
  • HDCP Support: 1.4
  • EDID Pass Through: -
  • Supported Audio: 2 Channel PCM
  • Separate Audio Ports: -
  • IR Support: 20-60 kHz
  • CEC Support: -
  • Serial Interface: -
  • Transmission Protocol: IP (H.265 video compression)
  • Transmission Medium: 1 x Cat.5e/6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: SSC337DE - SSD203D
  • Special Features: HDMI Loop Out port



Connectors

  • Transmitter Input: HDMI (Female)
  • Transmitter Output: HDMI (Female), RJ45 (Female), IR (Female)
  • Receiver Input: RJ45 (Female), IR (Female)
  • Receiver Ouput: HDMI (Female)
  • Bidirectonal Ports: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions WxHxD: 88x61.2x16.5mm (3.46x2.41x0.65in) per unit
  • Housing Material: Metal
  • Nett Weight: 0.53kg (1.17lb)
  • Operating Temperature: -10°C - 50°C (14°F - 122°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 5VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x130x70mm (8.66x5.12x2.76in)
  • Gross Weight: 0.73kg (1.61lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • Transmitter unit
  • Receiver unit
  • IR emitter cable, 1.5m
  • IR receiver cable, 1.5m
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy manual



Purchasing Information

  • No. 38398
  • EAN: 4002888383981
