Level One LevelOne Splitter POS-4002 1x FE High Power PoE

Kods POS-4002

Condition: Jauns

Vairāk informācijas

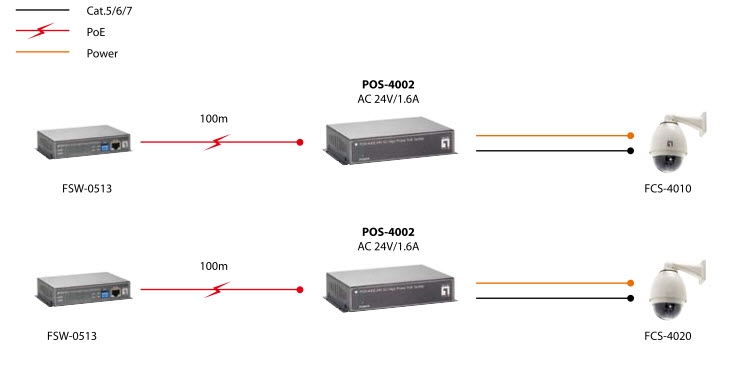

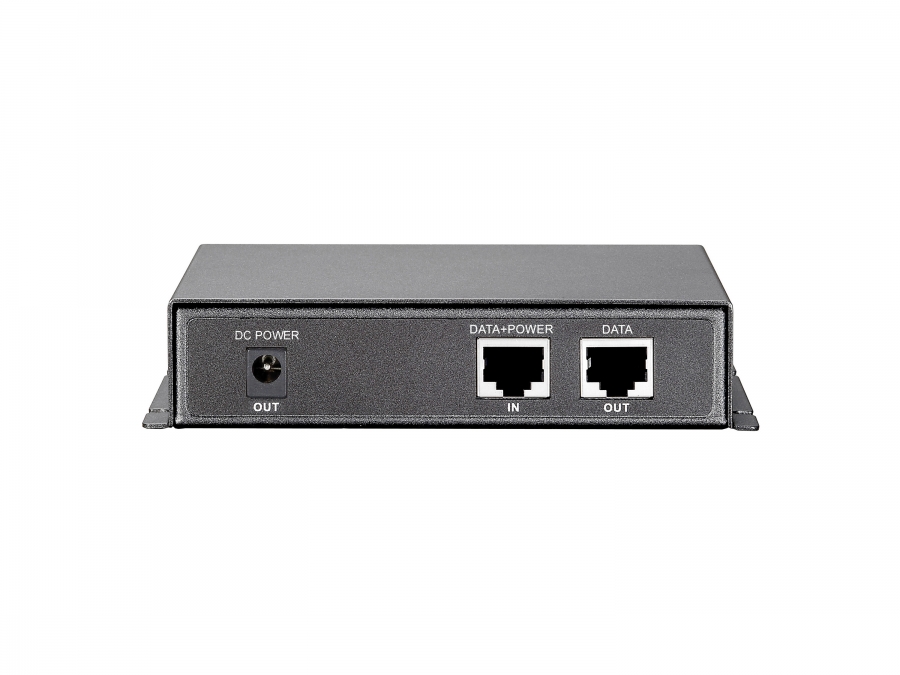

The POS-4002 is a high-power PoE Splitter for Power over Ethernet applications. With Ethernet Input (data + power) port and Output (data only) port, POS-4002 splits data and power from existing LAN cable and converts up to 24VAC/1.6A (max.) for power hungry devices such as Security cameras. With built-in current limit, short-circuit and overload protection, POS-4002 provides up to 24VAC/1.6A AC output power and can also work together with LevelOne’s high-power PoE Injector POI-4000(-Z) or high-power PoE Switch FSW-0513(-Z). Users can extend Ethernet connectivity for high-power PoE devices, such as IP network cameras that require than 15.4W.- 24VAC/1.6A High Power PoE Splitter - Split Power over Ethernet (PoE) to remote devices - AC Output: 24VAC/1.6A - Ethernet 100Mbps Wire Speed - Simple to install-Plug & Play

Networking standards	IEEE 802.3x
Cabling technology	10/100Base-T
Cable standard	Cat5
Duplex system	Full, Half
Product colour	Black
LED indicators	Power
Plug and Play	Y
Country of origin	Taiwan
Certification	FCC Rules Part 15 Class A CE
Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-out jack	Y
Output voltage	24 V
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Width	120 mm
Depth	90 mm
Height	28 mm
Package width	232 mm
Package depth	148 mm
Package height	80 mm
Quantity	1
Quick installation guide	Y
