Level One LevelOne Switch 24 Port ESP-2400 PoE 6kV 30W 19"Sp. Schutz

Kods ESP-2400

Condition: Jauns

Vairāk informācijas

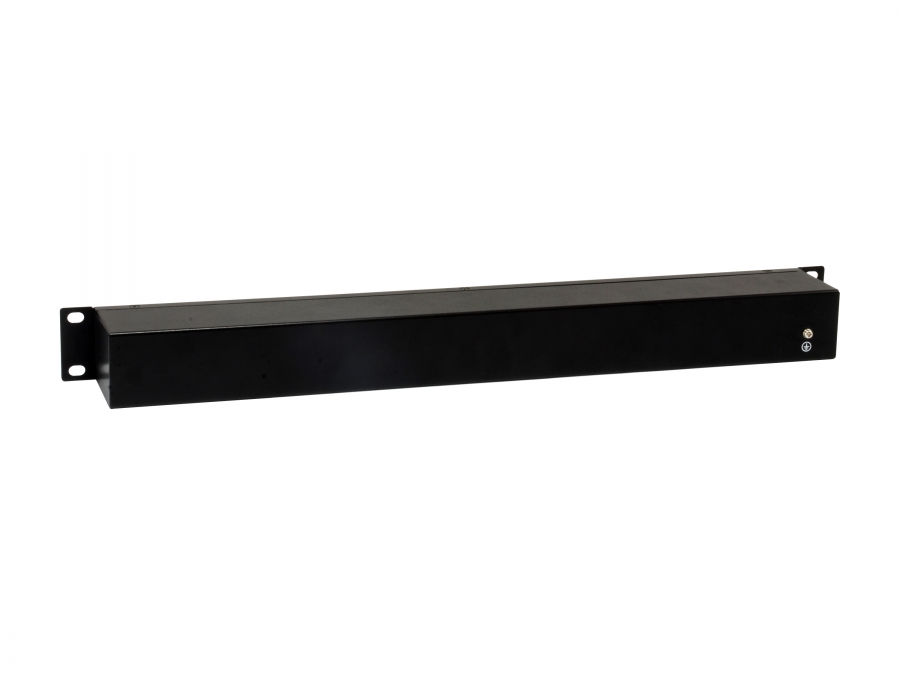

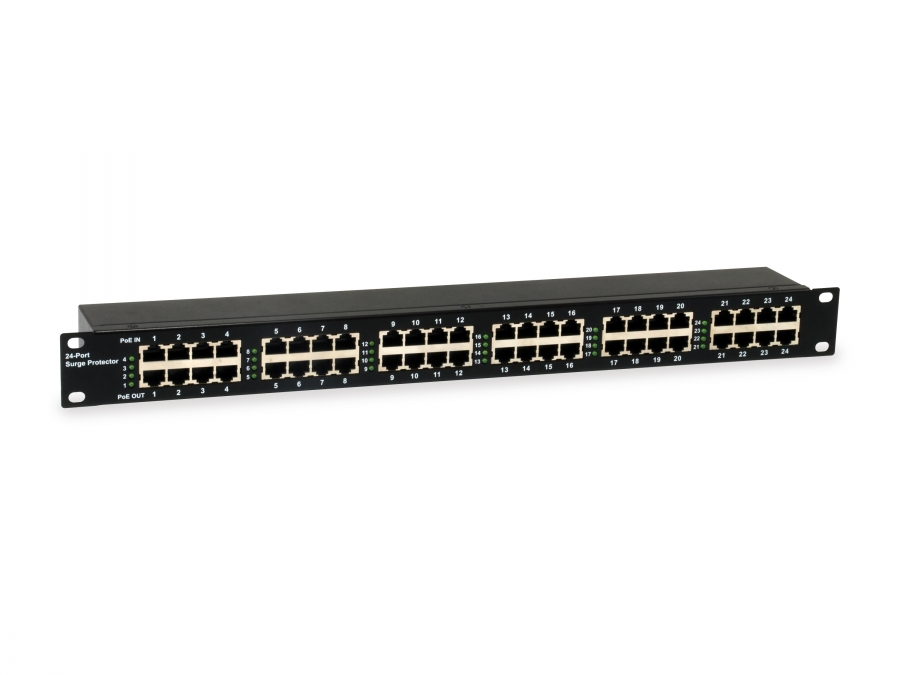

The LevelOne ESP-2400 is an in-line 24 ports RJ45 surge protector rack to support PoE standard IEEE802.3at/af devices connected. It has a total of 48 RJ45 connectors and simply installs in-line on each RJ45Cat5e/6 cable. The in-line installation is a very easy and straight forward. Unit protects up to 24 differentEthernet devices like switches, routers, laptops/PCs, etc from damaging surges caused by lightning orstatic electricity upto 6KV. Moreover, each port is isolated from others and will not fail the entire rack ifsome of ports are damaged which its LED is off.

Nominal input voltage	58 V
Clamping voltage	77 V
Ethernet LAN (RJ-45) ports	48
Product colour	Black
Material	Metal
Rack mounting	Y
Country of origin	Taiwan
Networking standards	IEEE 802.3af, IEEE 802.3at
Weight	1.2 kg
Width	482 mm
Depth	59 mm
Height	44 mm
Operating temperature (T-T)	-40 - 85 °C
Storage temperature (T-T)	-40 - 125 °C
Operating relative humidity (H-H)	20 - 95%
Storage relative humidity (H-H)	20 - 95%
Package width	540 mm
Package depth	130 mm
Package height	95 mm
Package weight	1.5 kg
Package type	Box
Harmonized System (HS) code	85364900
Master (outer) case width	550 mm
Master (outer) case length	290 mm
Master (outer) case height	520 mm
Master (outer) case gross weight	16.3 kg
Products per master (outer) case	10 pc(s)
