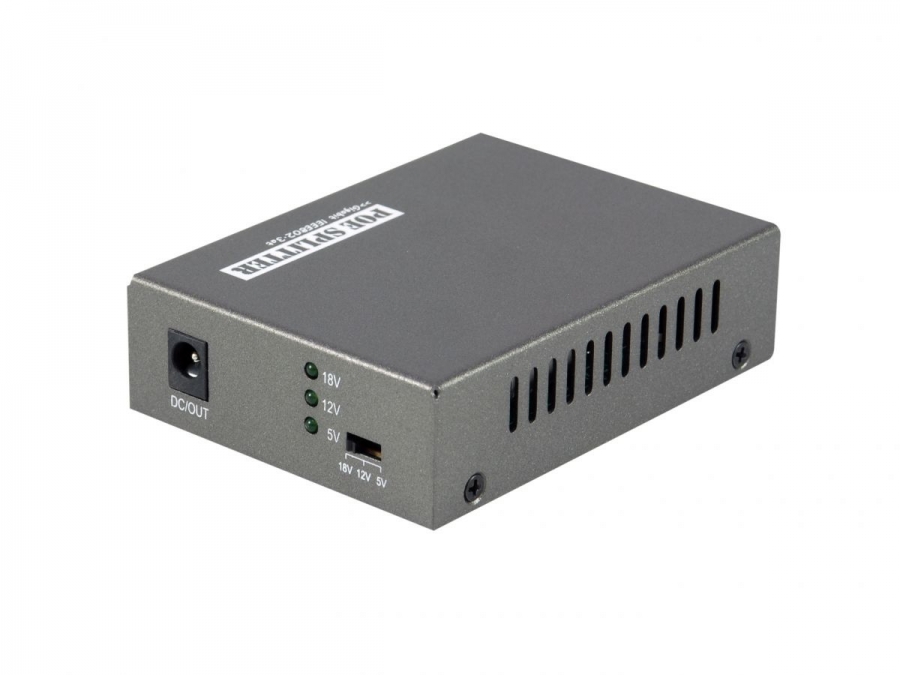

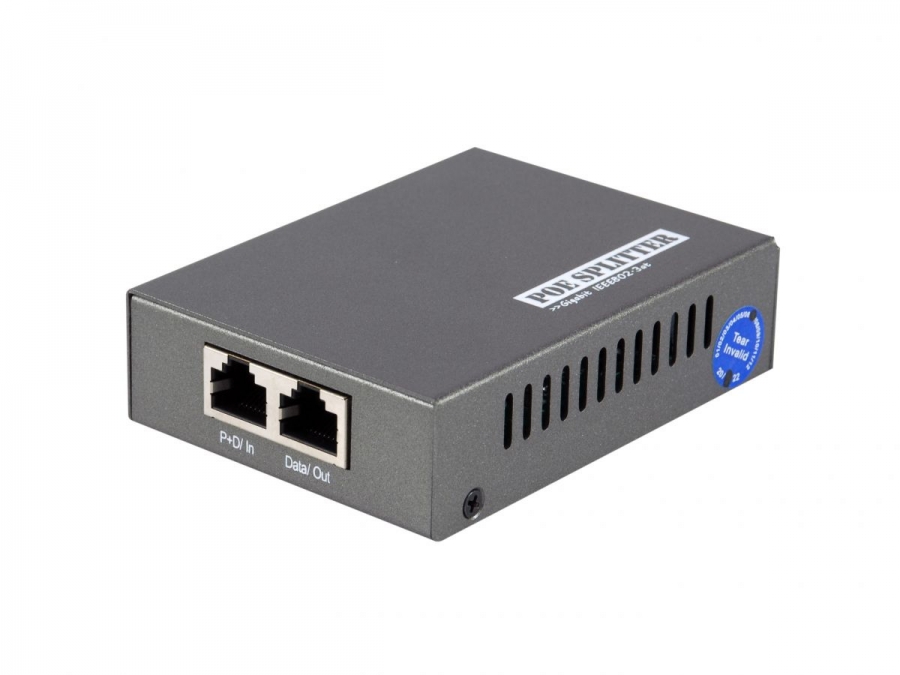

Level One LevelOne Splitter POS-3000 1x GE PoE

LEVEL ONE

POS-3000

Jauns

The LevelOne POS-3000 Gigabit High Power PoE Splitter splits a networked PoE Signal intoseparated power and Gigabit data sources. This device allows administrators to run Gigabit speed PoE cables over long distances and then split the PoE signal into separated data and power sources in order to network non-PoE devices. Active splitters are aslo available in the following output voltages (5V or 12V or 18V). Save installation and equipment cost when installing 802.11n access points, (Pan/Tilt/Zoom) IP cameras and more in remote locations. No need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Gigabit speeds.

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cabling technology10/100/1000Base-T(X)
Product colourBlack
LED indicatorsY
Plug and PlayY
Ethernet LAN (RJ-45) ports2
RJ-45 input ports1
RJ-45 output ports1
DC-out jackY
Power over Ethernet (PoE)Y
Adjustable output voltageY
DC output voltage18V
Output voltage5, 12, 18 V
Output power25 W
Output current (5V)3.5 A
Output current (12V)2 A
Power auto-sensingY
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Width92 mm
Depth60 mm
Height27 mm
Weight85 g
Quick installation guideY
