Level One LevelOne Splitter POS-4000 1x FE High-Power PoE

Kods POS-4000

Condition: Jauns

Vairāk informācijas

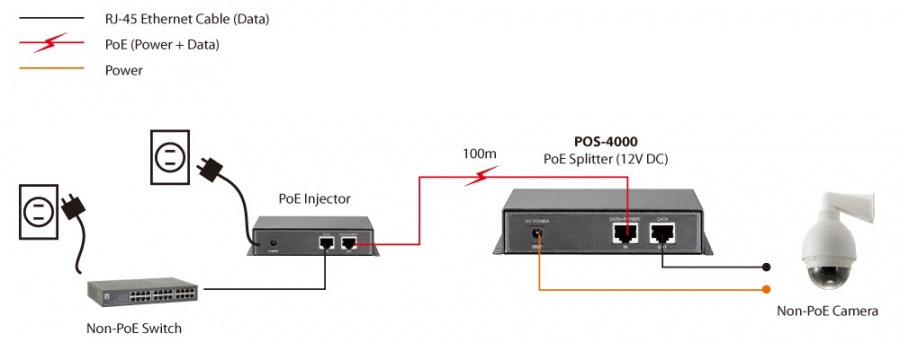

The LevelOne POS-4000 is a PoE Splitter working with the POI-4000, FSW-0513 and POH-1260 high power PoE injectors for enabling PoE functionality to network device that requires more power. The POS-4000 is capable of supporting maximum power output 12VDC/2.5A for device that requires power up to 30W. Internal current limit, short-circuit and overload protection are implemented to maintain safety of connected device. Furthermore, using with the POR-0100 PoE repeater can extend the PoE connecting distance beyond additional 100 meters.- Enables high-power PoE connectivity for non-PoE device - Max. power output up to 12VDC/2.5A (30W) - Simple Plug and Play installation

Networking standards	IEEE 802.3x
Cabling technology	10/100Base-T
Product colour	Grey
LED indicators	Power
Country of origin	Taiwan
Certification	FCC Rules Part 15 CE

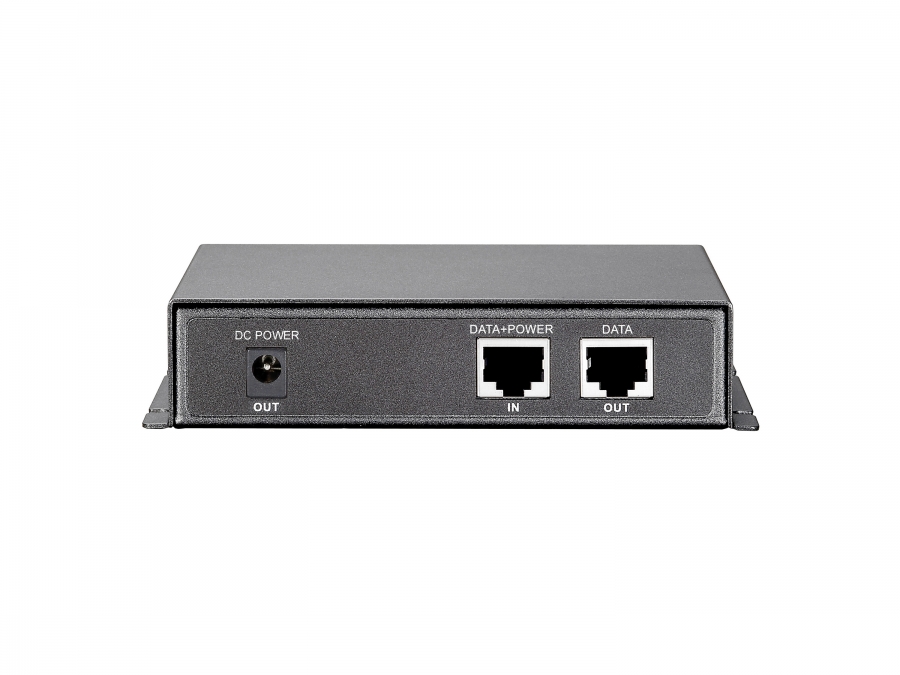

Ethernet LAN (RJ-45) ports	2
RJ-45 input ports	1
RJ-45 output ports	1
DC-out jack	Y
Power over Ethernet (PoE)	Y
DC output voltage	12V
Output power	30 W
Output current (12V)	2.5 A
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Width	120 mm
Depth	90 mm
Height	28 mm
Package width	232 mm
Package depth	148 mm
Package height	80 mm
Quantity	1
Package type	Box
