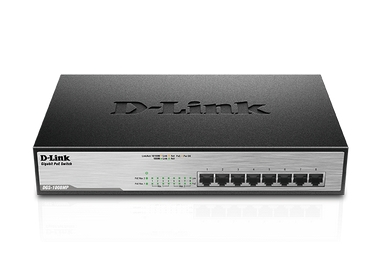

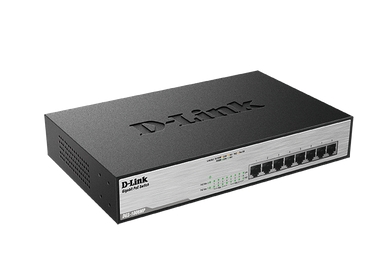

Switch 280mm D-Link DGS-1008MP 8*GE PoE+ retail

Manufacturer: D-LINK

Kods DGS-1008MP

Condition: Jauns

Vairāk informācijas

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required. The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables. No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets. DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Networking standards	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Y
Auto MDI/MDI-X	Y
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Y
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet buffer memory	0.192 MB
Rack mounting	Y
Form factor	1U
Product colour	Black
LED indicators	Y
Shipping (inner) case height	28.5 cm
Shipping (inner) case width	40.6 cm
Shipping (inner) case length	54.5 cm
Shipping (inner) case net weight	14.2 kg
Products per shipping (inner) case	5 pc(s)
Pallet gross weight (air)	563.8 kg
Master (outer) cases per pallet (air)	36 pc(s)
Products per pallet (air)	180 pc(s)
Pallet gross length	110 cm
Pallet gross width	120 cm
Pallet height (air)	193.5 cm
Pallet gross weight (sea)	563.8 kg
Master (outer) cases per pallet (sea)	36 pc(s)
Products per pallet (sea)	180 pc(s)
Pallet height (sea)	193.5 cm
Shipping (inner) case gross weight	15.3 kg
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	13.5 W
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	140 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	280 mm
Depth	180 mm
Height	44 mm
Weight	1.84 kg
Package width	262 mm
Package depth	391 mm
Package height	102 mm
Package weight	2.85 kg
Harmonized System (HS) code	85176990
