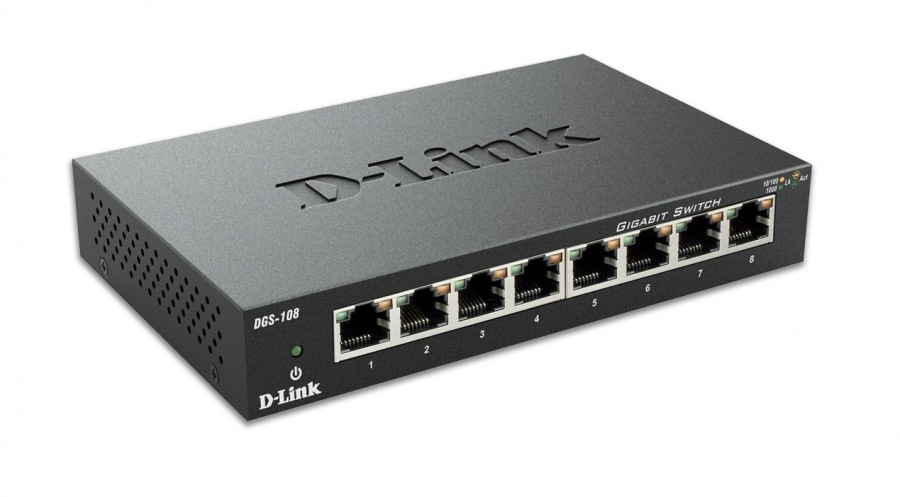

Switch D-Link DGS-108 8*GE retail

Manufacturer: D-LINK

Kods DGS-108

Condition: Jauns

Vairāk informācijas

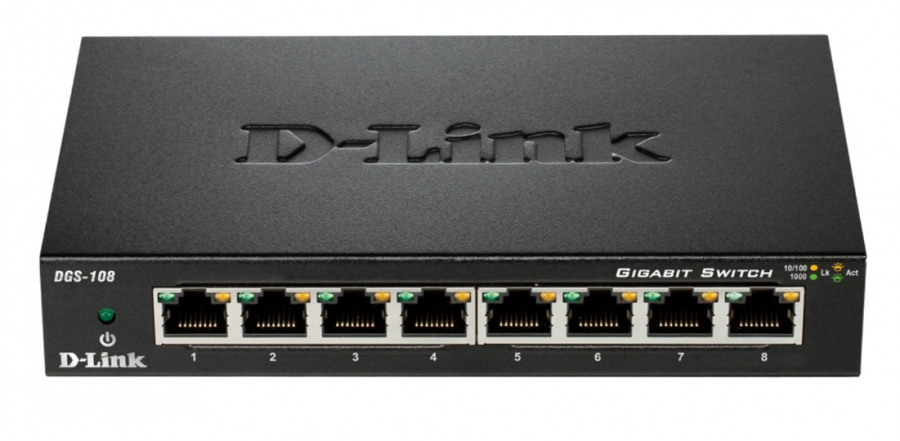

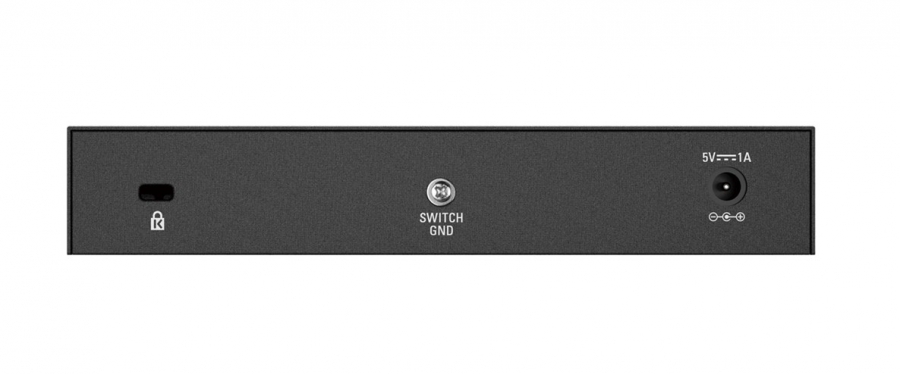

Effortless Gigabit Networking With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 8 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with two color LED indicators per port to quickly distinguish link status. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.Think Green The DGS-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.Environmentally Friendly The DGS-108 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.

Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Y
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Store-and-forward	Y
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Y
Packet buffer memory	0.128 MB
MAC address filtering	Y
Rack mounting	N
Product colour	Black
Housing material	Metal
LED indicators	Link, Power, Y
Certification	FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Mean time between failures (MTBF)	2053751 h
Input current	1 A
Input voltage	5 V
Power consumption (typical)	4.5 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.548 BTU/h
Weight	440 g
Harmonized System (HS) code	85176990
Data transfer rate	2000 Mbit/s
Dimensions (WxDxH)	162 x 102 x 28 mm
Connectivity technology	Wired
