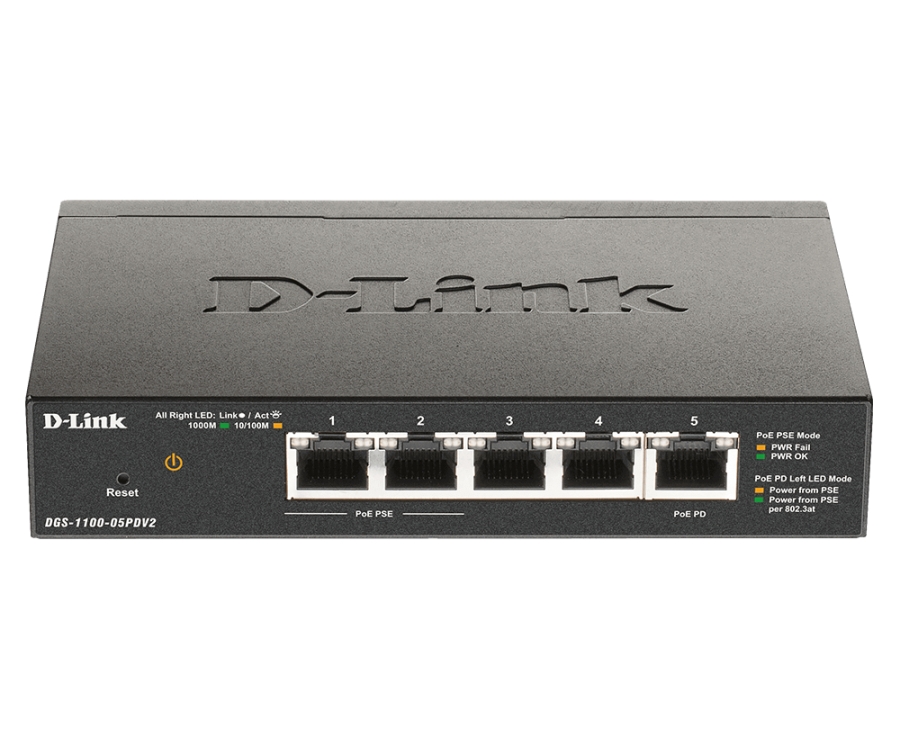

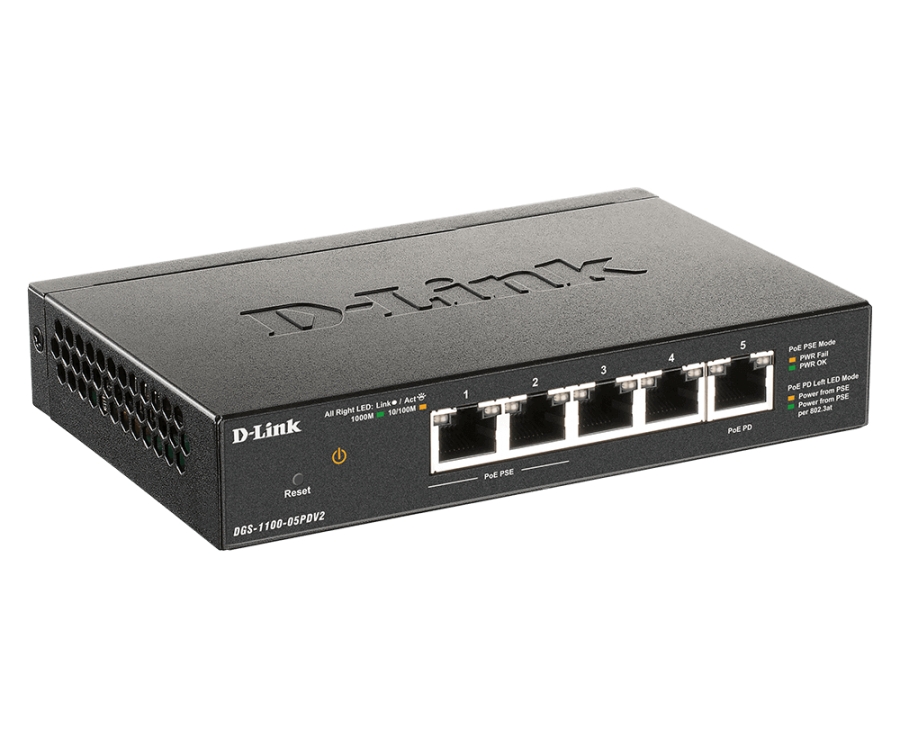

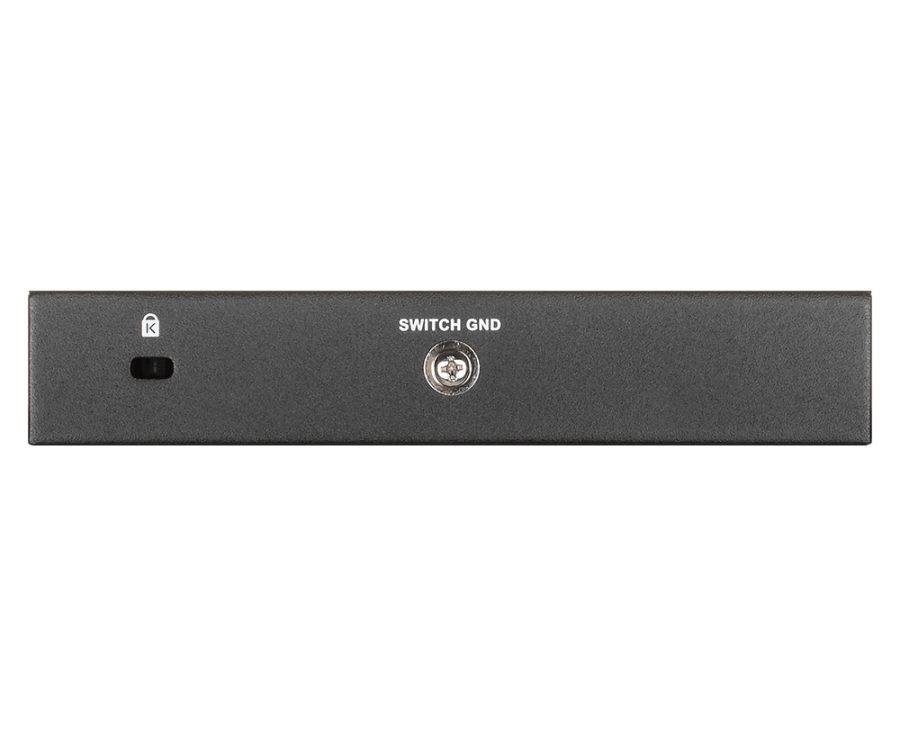

Switch D-Link DGS-1100-05PDV2 PoE-powered 5*GE PoE retail

Manufacturer: D-LINK

Kods DGS-1100-05PDV2

Condition: Jauns

Vairāk informācijas

Advanced Security Features The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexitiesSimplify Network Management D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.Easy Troubleshooting The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.Green Technology D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

Switch type	Managed
Quality of Service (QoS) support	Y
Web-based management	Y
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Full duplex	Y
Half duplex	Y
Auto MDI/MDI-X	Y
Ethernet LAN data rates	10000 Mbit/s
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
DHCP features	DHCP client
Static port security	Y
SSH/SSL support	Y
MAC address entries	Static MAC address entries
Rack mounting	N
Product colour	Black
Certification	FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI
Flash memory	2 MB
Fanless	Y
Mean time between failures (MTBF)	2357475 h
Power consumption (max)	24.08 W
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	2
Power over Ethernet (PoE) power per port	18 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Width	150 mm
Depth	97 mm
Height	28 mm
Weight	380 g
Harmonized System (HS) code	85176990
