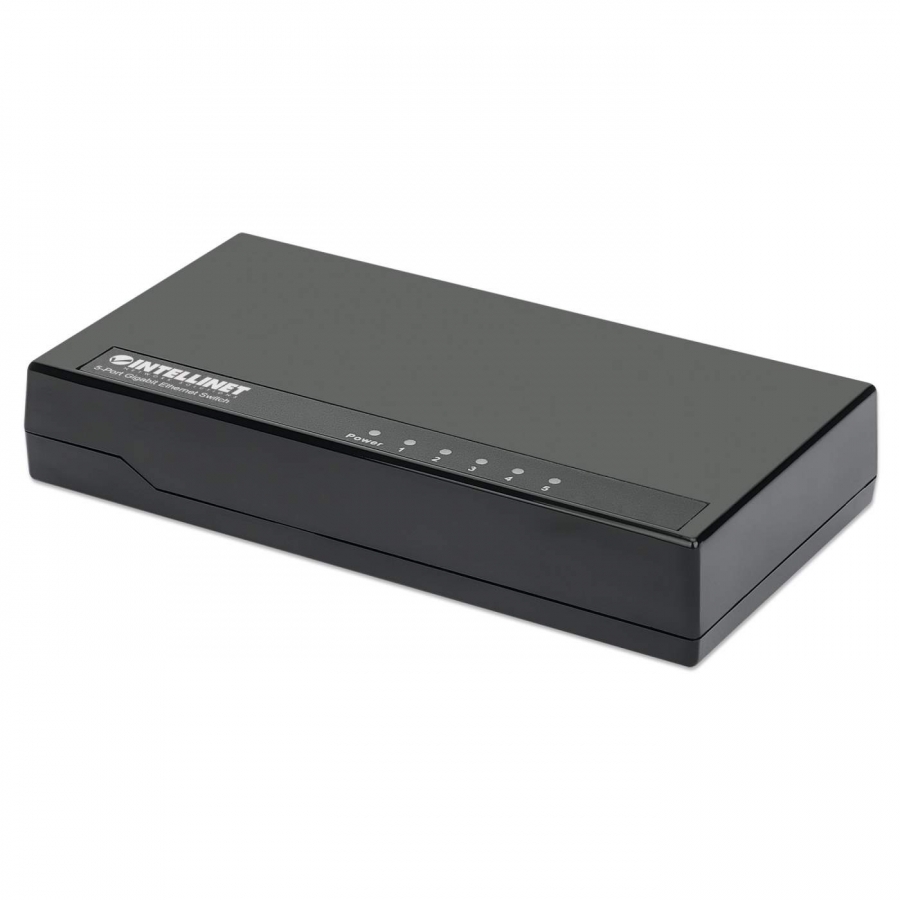

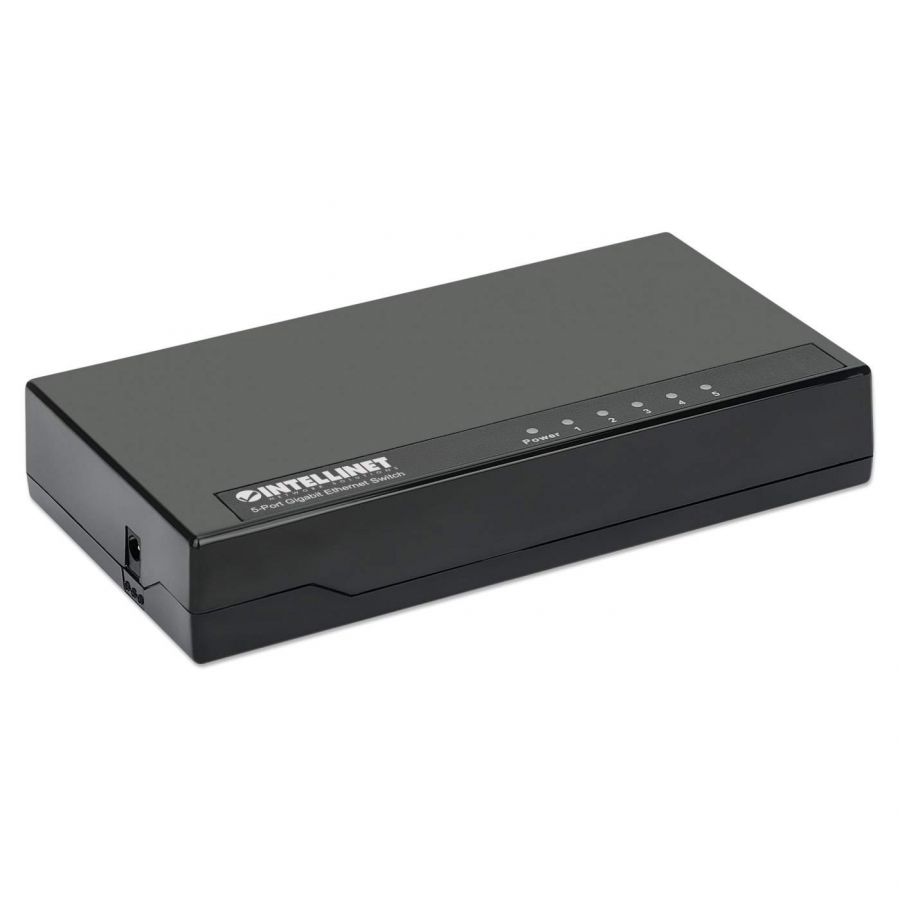

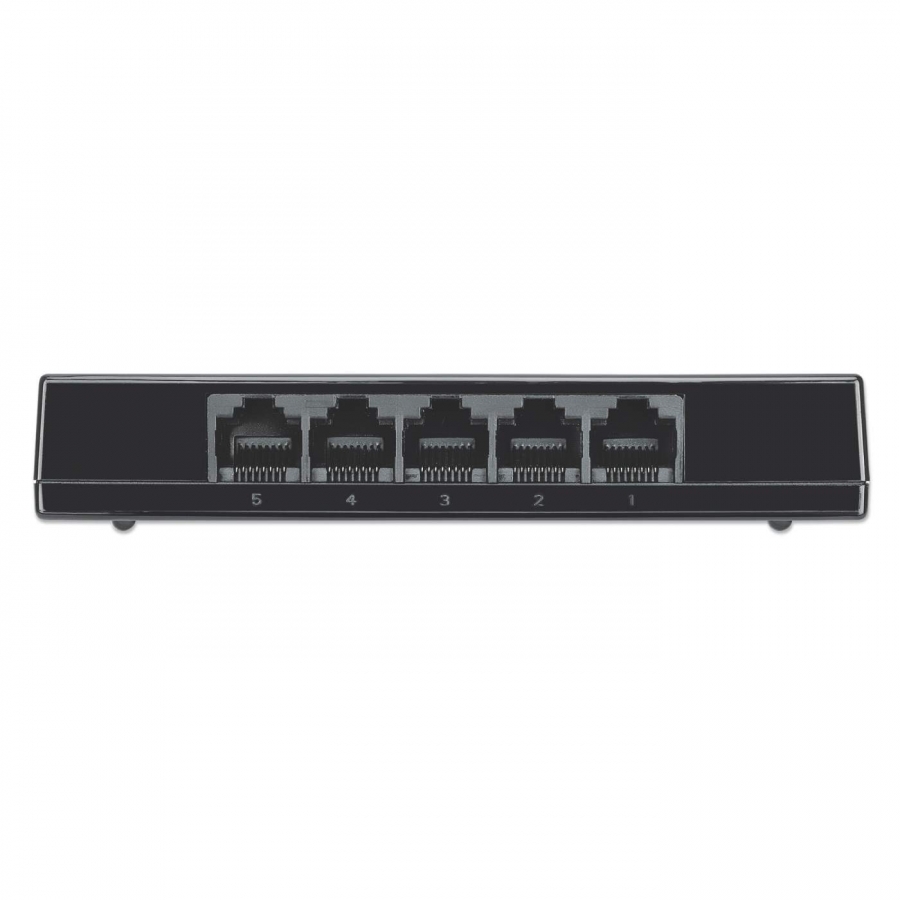

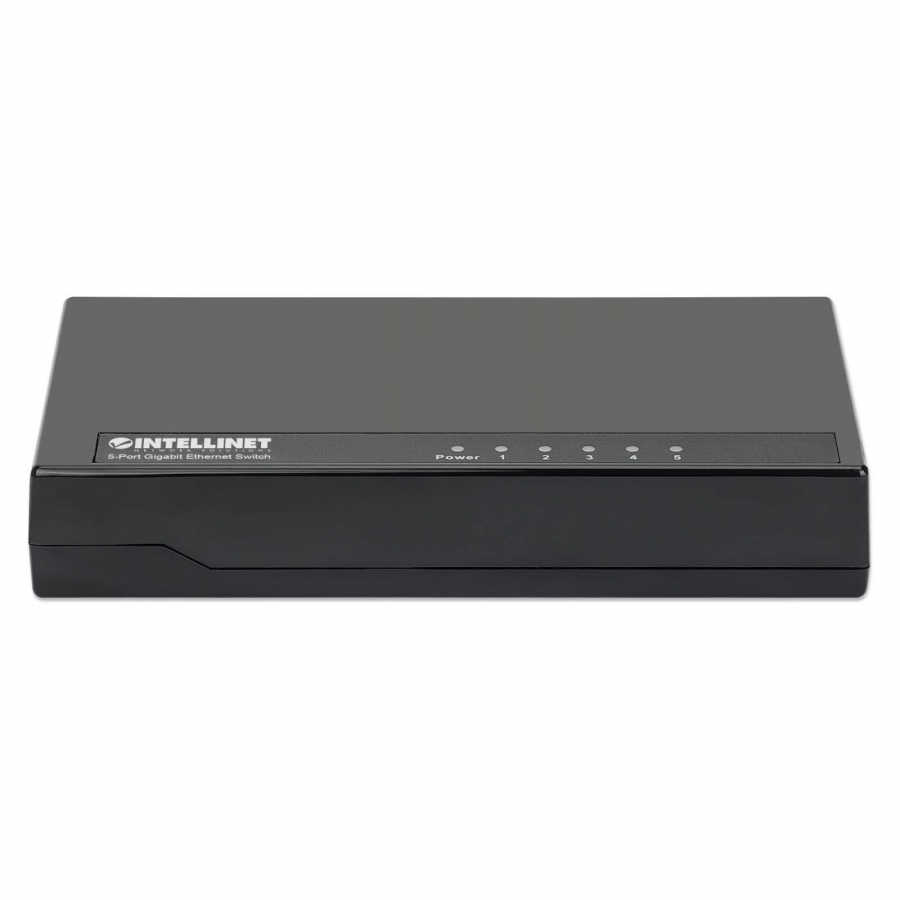

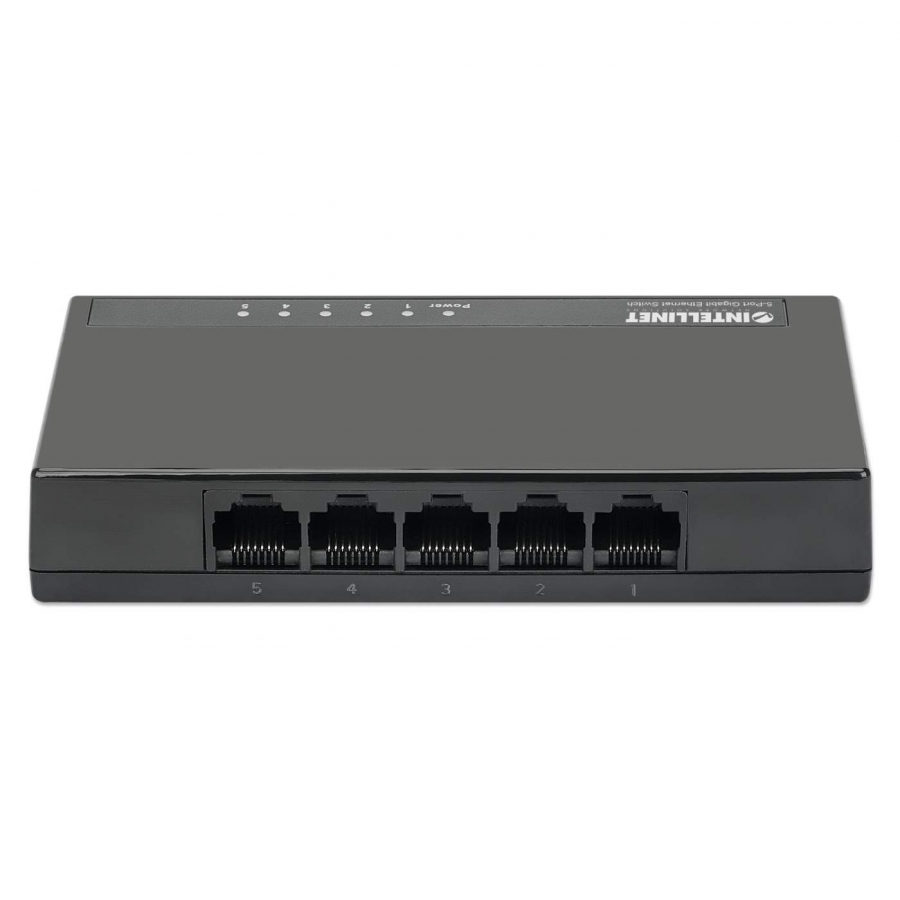

The 5-Port Gigabit Ethernet Switch from Intellinet Network Solutions is perfect for the home offices and small-size businesses looking for a durable switch that is reliable and easy to install. Small and powerful, this Gigabit Switch is easy to install and connects up to five computers, servers, printers, switches or any other Ethernet devices at 10, 100 or 1000 Mbps over Ethernet cables, and it works with any operating system. The auto features of this switch make installation plug-and-play and hassle-free. Plus, it has Green Ethernet technology, allowing it to monitor power usage and turn off unused ports to save electricity.
|
| Basic switching RJ-45 Ethernet ports quantity | 5 | | Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) | | Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x | | 10G support | N | | Cable types supported | Cat3, Cat4, Cat5, Cat6 | | Full duplex | Y | | Auto MDI/MDI-X | Y | | MAC address table | 2000 entries | | Switching capacity | 10 Gbit/s | | Store-and-forward | Y | | Jumbo frames support | Y | | Packet buffer memory | 1.5 MB | | Rack mounting | N | | Stackable | N | | LED indicators | Link, Power, Speed | | Certification | FCC Class B, CE, RoHS, NDAA | | Power source | AC | | Power supply included | Y | | Power consumption (max) | 1.6 W | | Power over Ethernet (PoE) | N | | Operating temperature (T-T) | 0 - 40 °C | | Storage temperature (T-T) | -40 - 70 °C | | Operating relative humidity (H-H) | 10 - 90% | | Storage relative humidity (H-H) | 5 - 90% | | Width | 48 mm | | Depth | 81 mm | | Height | 22 mm | | Weight | 110 g | | Manual | Y |
|
