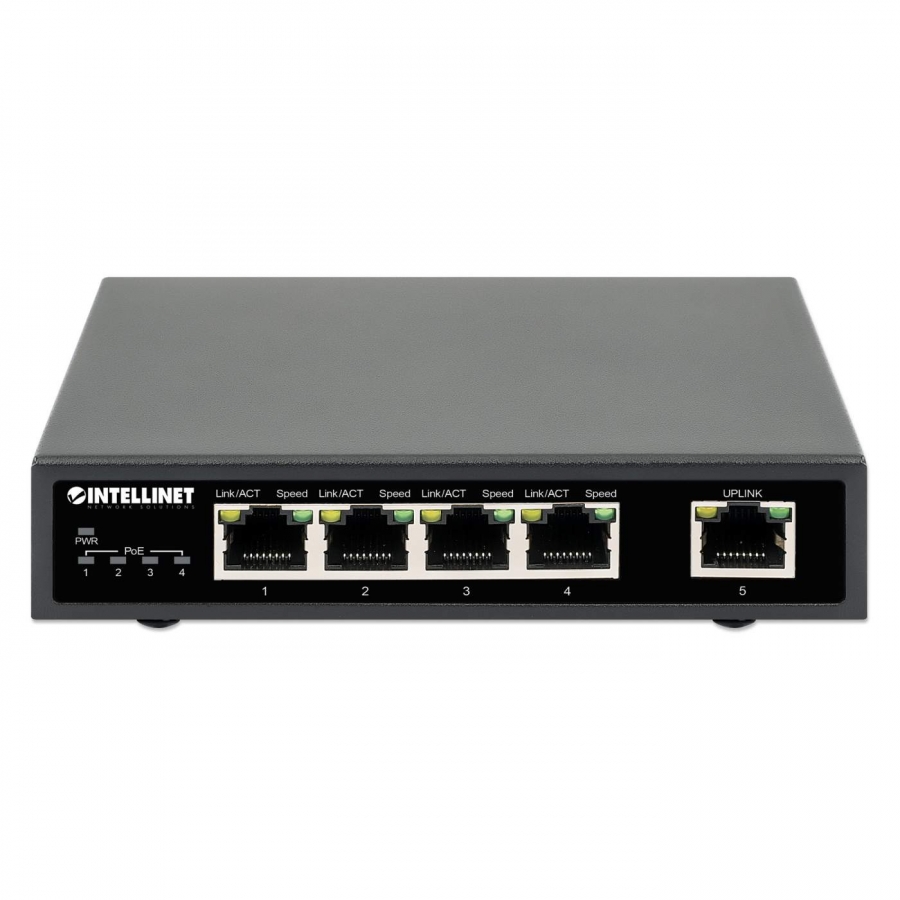

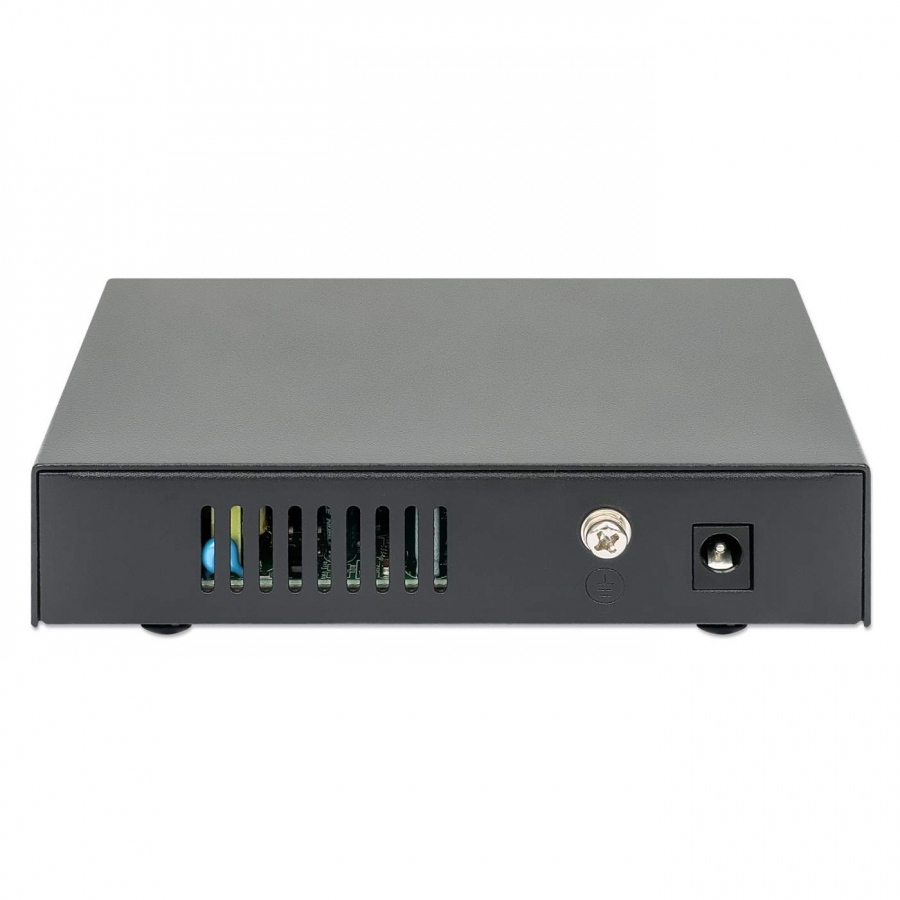

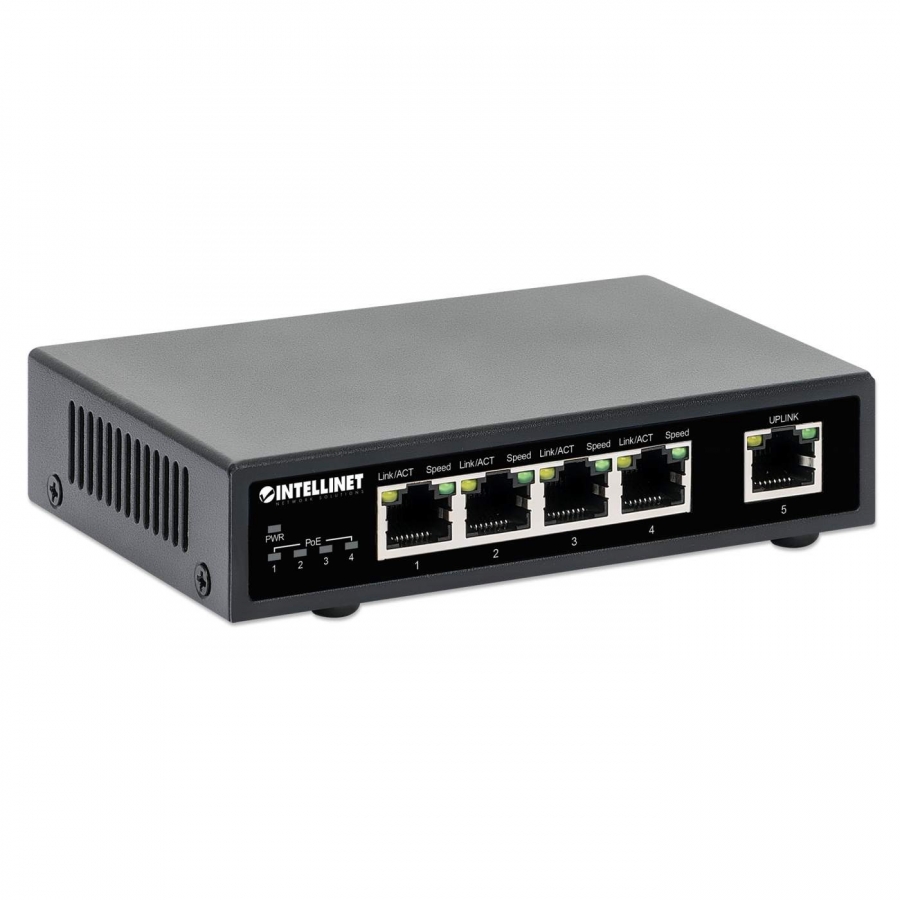

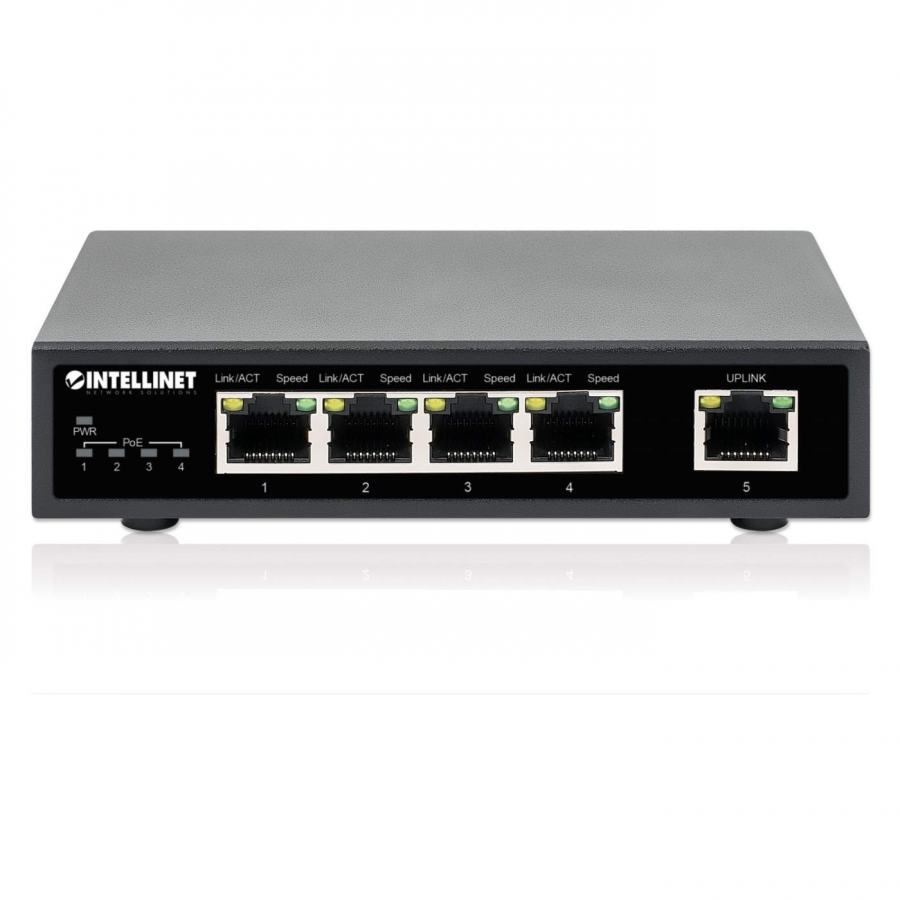

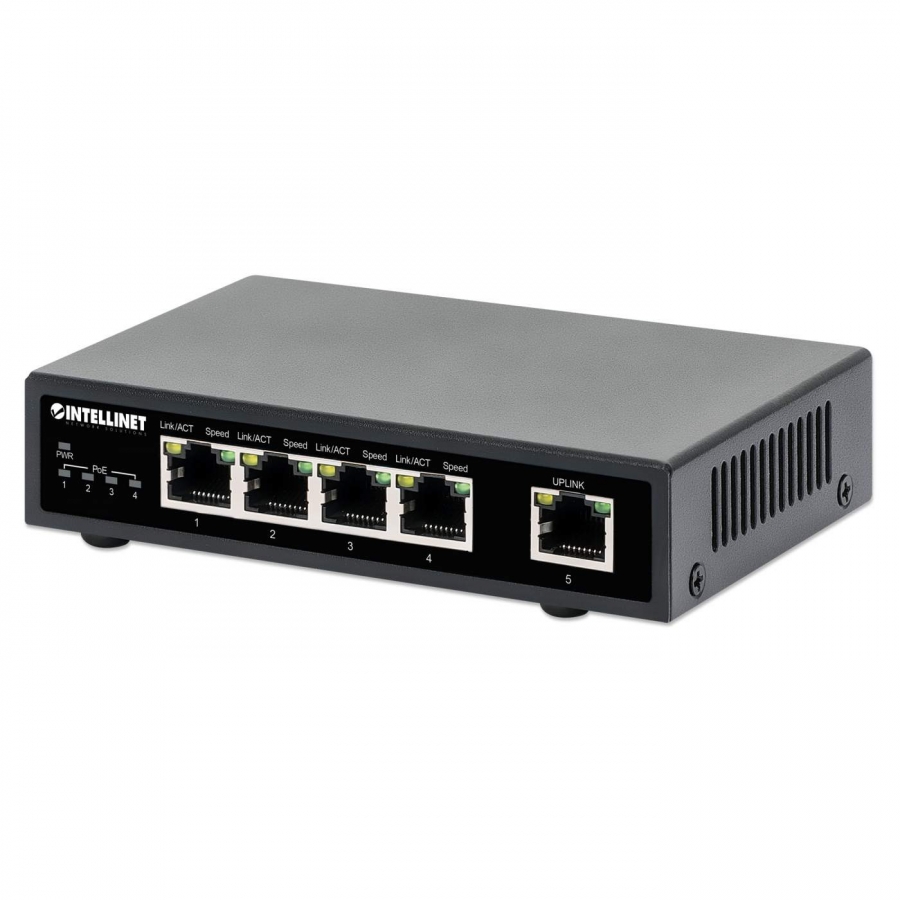

INTELLINET 5-Port Gigabit PoE+ Switch 62W

Kods 561839

Condition: Jauns

Vairāk informācijas

Desktop 5-Port PoE Switch - Supports 10/100/1000Mbps, Power over Ethernet 802.3atThe 5-Port Gigabit Ethernet PoE+ Switch from Intellinet Network Solutionspasses both data and electrical power to a number of PoE-compatible devicesvia standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernetports - four of which are high-power PoE+ PSE ports - this switch can powerwireless LAN access points and bridges, VoIP phones, IP video cameras andmore while delivering network speeds up to 1000 Mbps.High-power PoE+ with output up to 30 wattsThis switch supports the IEEE 802.3at protocol and can inject up to 30 watts ofpower per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to theswitch require no additional power, which eliminates the time and expense ofelectrical rewiring and minimizes the unsightly clutter caused by power suppliesand adapters in awkward places such as ceilings and walls. Any mix of PoE andnon-PoE devices is supported, and thanks to its short circuit, overload and highvoltage protection function, your equipment is well-protected.

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Uplink ports quantity	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5e
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Y
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power
Certification	FCC Class A, CE, RoHS
Power source	AC
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	65 W
Power protection features	Overload, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	62 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 90%
Width	130 mm
Depth	86 mm
Height	29 mm
Weight	770 g
Cables included	AC
Manual	Y
Package weight	850 g
