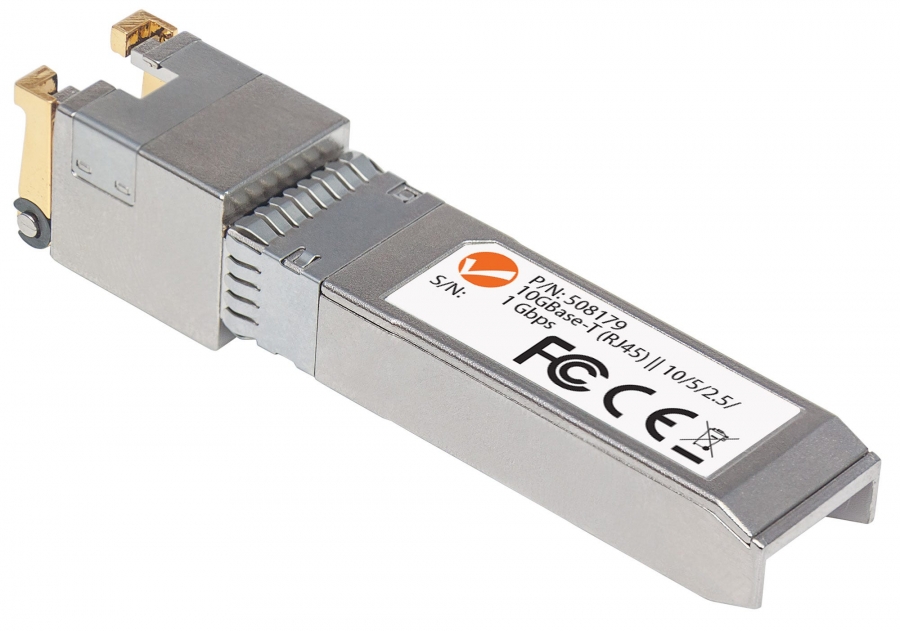

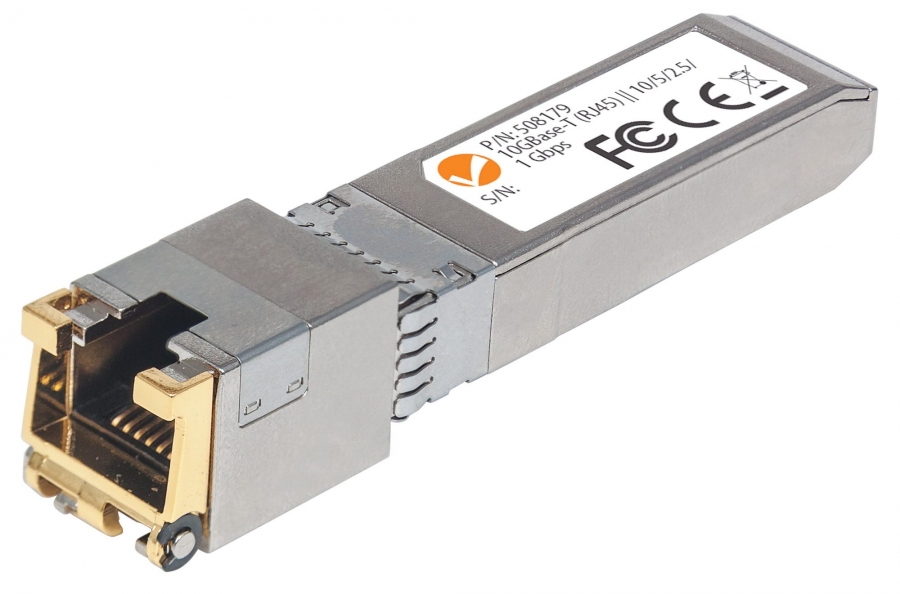

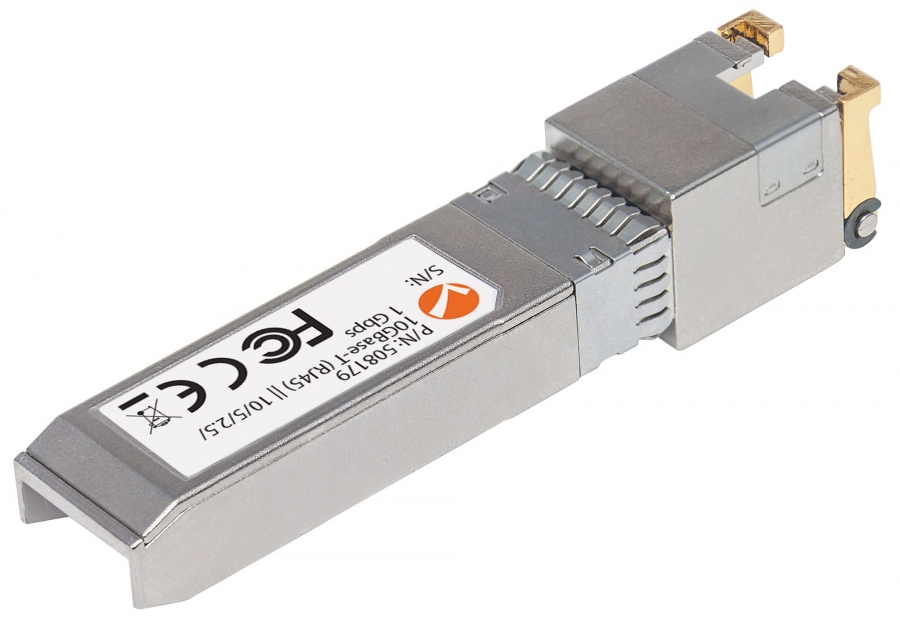

INTELLINET Transceiver 10 Gigabit SFP+ Mini-GBIC für RJ45

INTELLINET

508179

Jauns

10 Gigabit Copper SFP+ Transceiver Module The new line of Intellinet Network Solutions Enhanced Small Form Factor Pluggable (SFP+) Transceivers provides customers with a combination of high-performance and affordability. The metal housing of these transceiver modules reduces electromagnetic interference and increases their durability. 10 Gigabit Ethernet connections via Copper RJ45 Cabling The Intellinet Network Solutions 10 Gigabit Copper SFP+ Transceiver Module provides an impressive data transfer speed of up to 10 Gigabits per second when using Cat6a (augmented Cat6 cabling with improved specifications). This SFP+ copper transceiver is an extremely versatile and ultra-high performing connection point for your server or workstation. State-of-the-Art NBASE-T™ Technology With full support of the IEEE 802.3bz standard, the Intellinet Network Solutions 10 Gigabit Copper SFP+ Transceiver Module supports Gigabit speeds using Cat6 and Cat5e network cabling. The former transfers and receives data at up to 5 Gbps whereas the latter still manages an impressive 2.5 Gbps. Compatibility Compatibility in your network is essential. The Intellinet Network Solutions SFP+ Transceiver Module can be used with any Intellinet Network Solutions SFP+ equipped network switch or any other MSA-compliant (multi-source agreement) SFP+ enabled switch. And since the Intellinet Network Solutions SFP+ transceiver module is set to broadcast the part number MA-SFP-10G-T, compatibility to your Cisco gear is provided. Hot-Pluggable The Intellinet Network Solutions 10 Gigabit Copper SFP+ Optical Transceiver Module is fully hot-pluggable, allowing you to install the module without rebooting your network switch for uninterrupted network traffic.

SFP transceiver typeCopper
Maximum data transfer rate11100 Mbit/s
Interface typeSFP+
Maximum transfer distance30 m
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Auto MDI/MDI-XY
Product colourSilver
Hot-Plug supportY
CertificationFCC Class A, CE Mark, IEC-60825
Input voltage3.3 V
Power consumption (typical)3 W
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width13.7 mm
Depth68 mm
Height13.6 mm
Weight25.5 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
