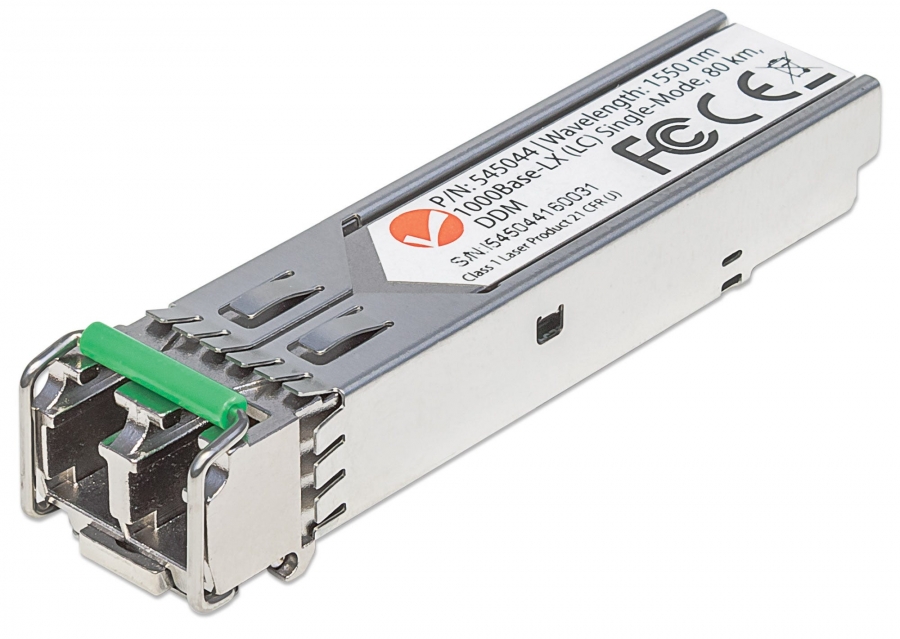

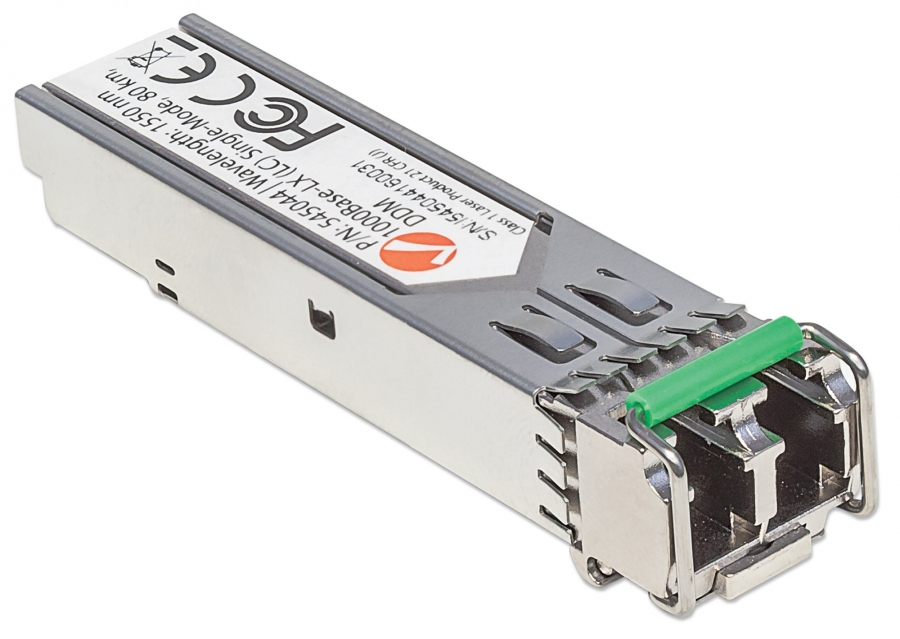

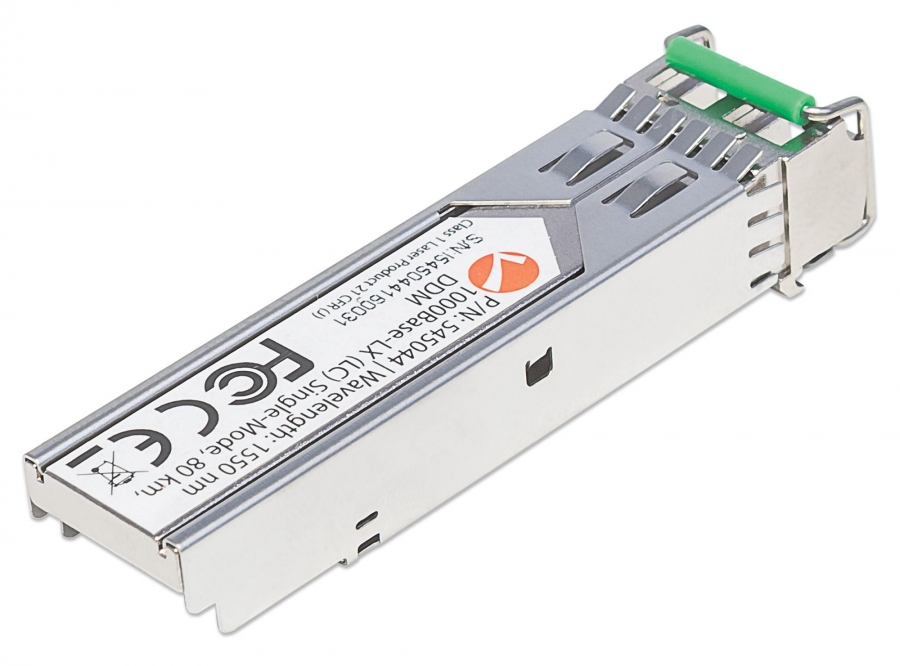

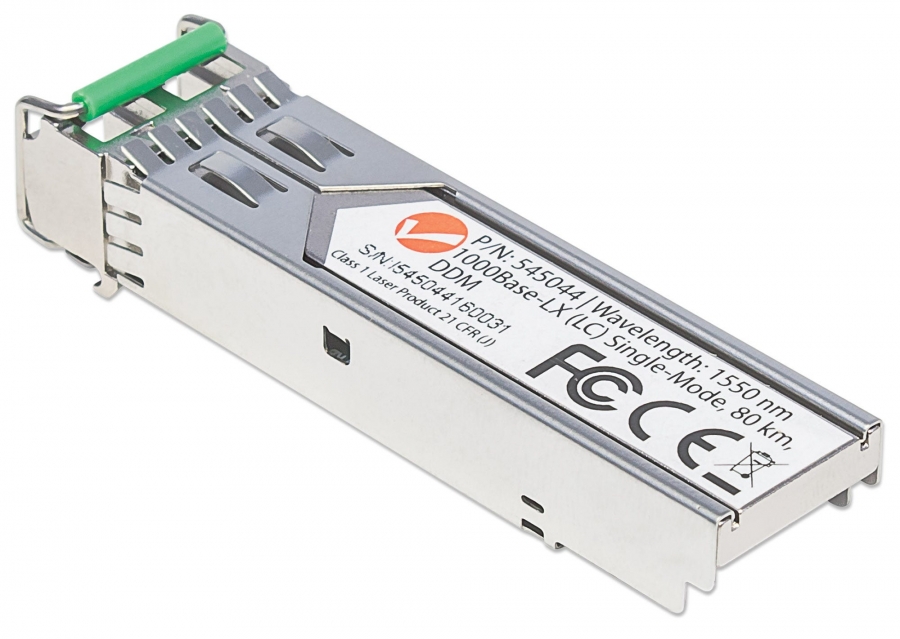

INTELLINET Gigabit SFP Mini-GBIC Transceiver LWL-Kabel 80K

INTELLINET

545044

Jauns

Gigabit Fibre SFP Optical Transceiver Module _x000D_ _x000D_ The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_ _x000D_ Small Size for High-Density Fibre Connections _x000D_ The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_ _x000D_ Compatibility _x000D_ Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545044) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-ZX-SMD, compatibility to your Cisco gear is provided. _x000D_ _x000D_ Hot-Pluggable _x000D_ The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545044) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_ _x000D_ Digital Diagnostics Monitoring (DDM) _x000D_ The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545044) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance80000 m
Wavelength1550 nm
Tx power (min)-2 dBmW
Tx power (max)5 dBmW
Link budget22 dB
Ethernet LANY
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.3z
Duplex systemFull
Product colourSilver
Hot-Plug supportY
CertificationFCC Class A, CE Mark
Input voltage3.3 V
Power consumption (typical)1 W
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width14 mm
Depth57 mm
Height12 mm
Weight18 g
Number of products included1 pc(s)
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
