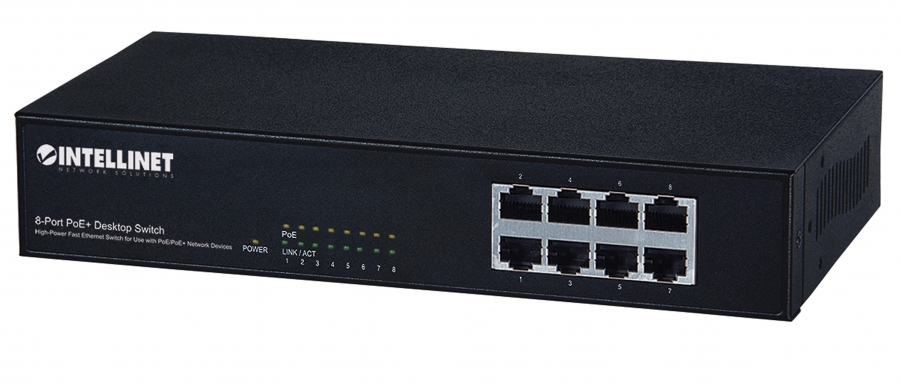

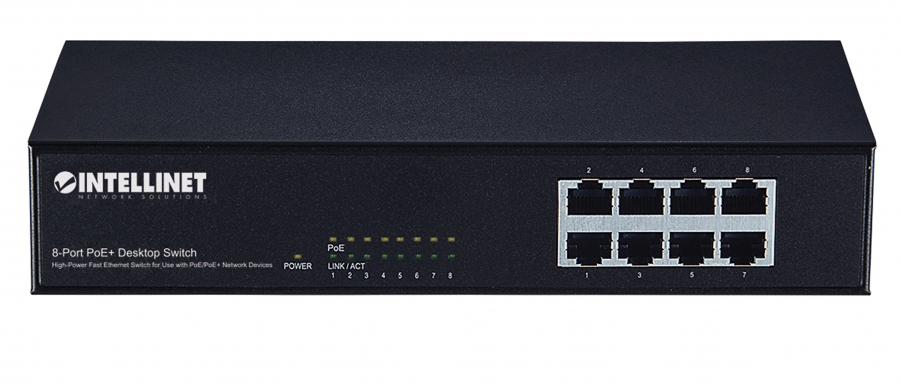

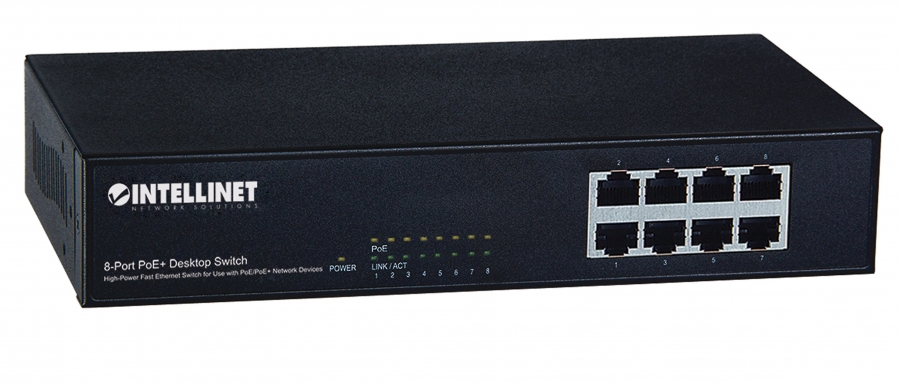

INTELLINET Switch 8x GE Web-Managed Desktop PoE+

INTELLINET

560764

Jauns

Save installation time and money with PoE. _x000D_ _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_ _x000D_ Power over Ethernet 802.3at _x000D_ The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_ _x000D_ _x000D_ * Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Power connectorDC-in jack
Networking standardsIEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
MAC address table2048 entries
Switching capacity1.6 Gbit/s
Forwarding rate0.1488 Mpps
Store-and-forwardY
Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, PoE, Power
CertificationFCC Class A, CE
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)150 W
Power over Ethernet (PoE)Y
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Width280 mm
Depth179 mm
Height44 mm
Weight1.5 kg
Cables includedAC
ManualY
Harmonized System (HS) code85176990
