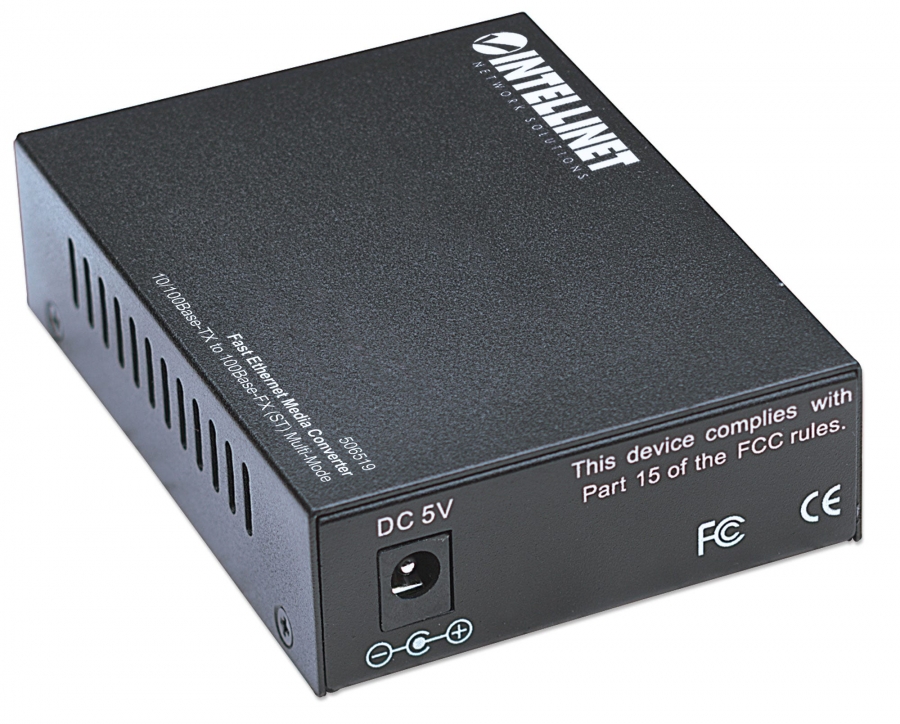

INTELLINET Medienkonverter Fast Ethernet Multimode 2km sw

INTELLINET

506519

Jauns

The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums. Expands the Size of an Existing Network Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. Cabling Flexibility Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.

Maximum data transfer rate100 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Flow control supportY
Duplex systemFull, Half
Fiber optic connectorST
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
DC-in jackY
Maximum transfer distance2000 m
Wavelength1310 nm
Fiber mode structureMulti-mode
Fiber cable diameters supported (core/cladding)50/125 µm
Tx power (min)-22 dBmW
Tx power (max)-12 dBmW
Sensitivity-30 dBmW
InternalN
LED indicatorsLAN, Link, Power
Product colourBlack
Housing materialMetal
CertificationFCC, CE
Input current1 A
Output voltage5 V
Power consumption (max)2.5 W
External power adapterY
Width70 mm
Depth107 mm
Height26 mm
Weight500 g
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-45 - 85 °C
Operating relative humidity (H-H)10 - 90%
ManualY
Harmonized System (HS) code85176990
