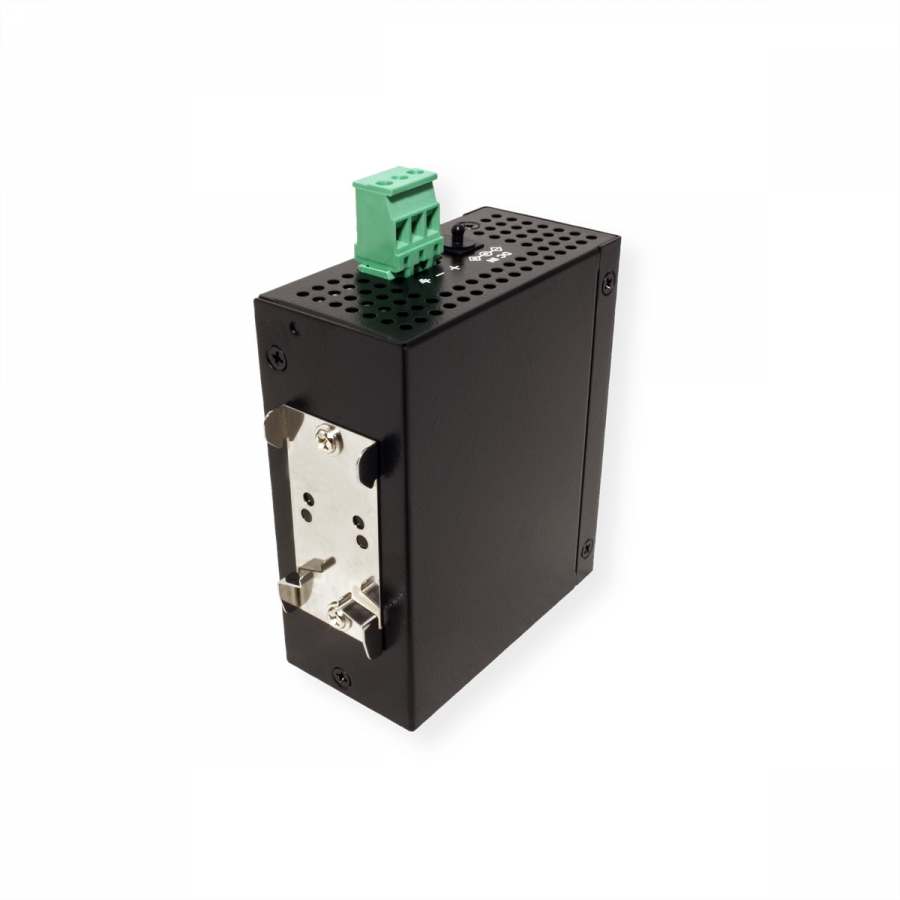

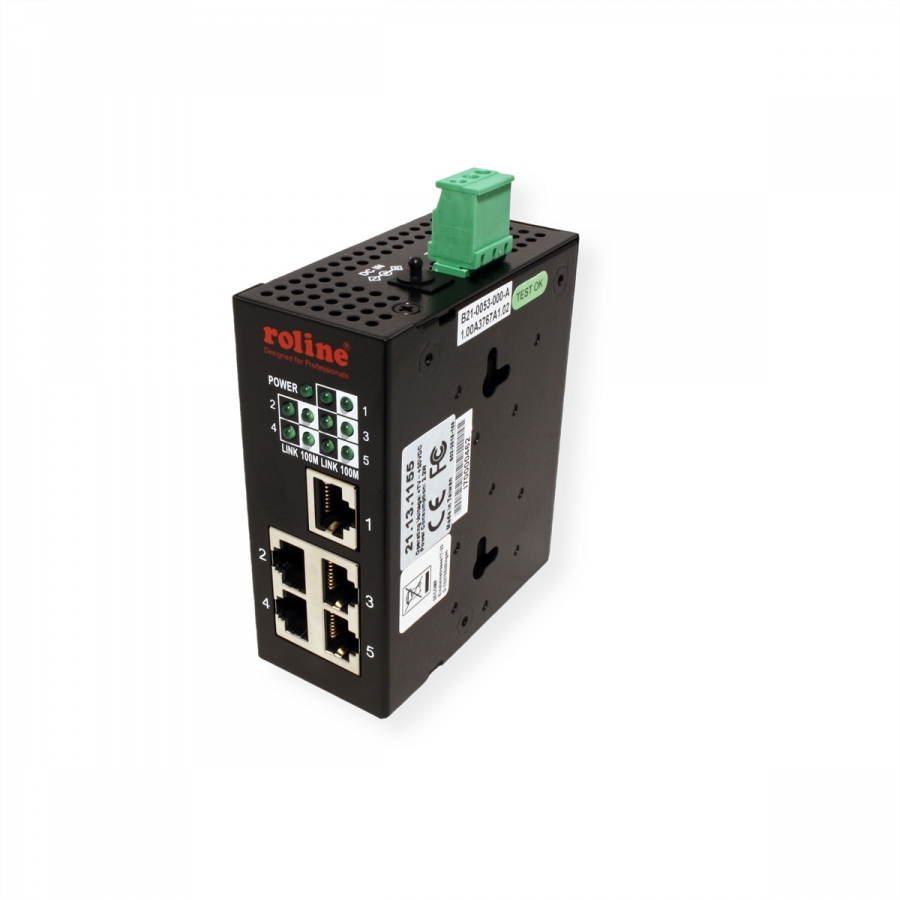

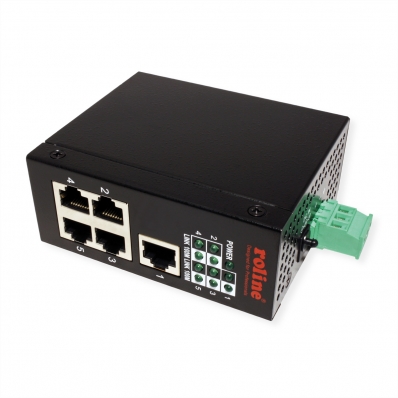

ROLINE Industrial Switch, 5x RJ-45, unmanaged

ROLINE

21.13.1155

New

  • Fast Ethernet switch with 5 shielded 10/100 Base-T copper ports
  • Wide operating temperature range for temperature critical environment
  • Auto MDI/MDI-X crossover function
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation
  • Supports DIN-rail mounting
  • Power: Input: 5 - 30V DC, Consumption: 2.2W (max.)
  • Operating Temperature: - 10 °C - +70 °C
  • DC Input via terminal block or DC power jack ( 6.3mm / 2.0mm)
  • Dimensions: 40 x 80 x 95 mm (WxDxH)
  • As according power supply we recommend 21.13.1226



ManufacturerROLINE
Product groupNetwork Switches
Product typeFast Ethernet Switch
Colourblack
Scope of deliverySwitch
Network standardFast Ethernet
LAN (Mbps)10/100
Quantity of ports5
Fast Ethernet Ports RJ-455
Mounting formDIN Rail
Management
Stackable
Technical particularity- 10 ºC - +70 ºC
Dimensions (HxWxD)95 x 40 x 80 mm
Power supply unit (internal/external)External
height95 mm
width40 mm
depth80 mm
Weight281.09 g
Current catalog editionC21-01.10

Industrial networks
