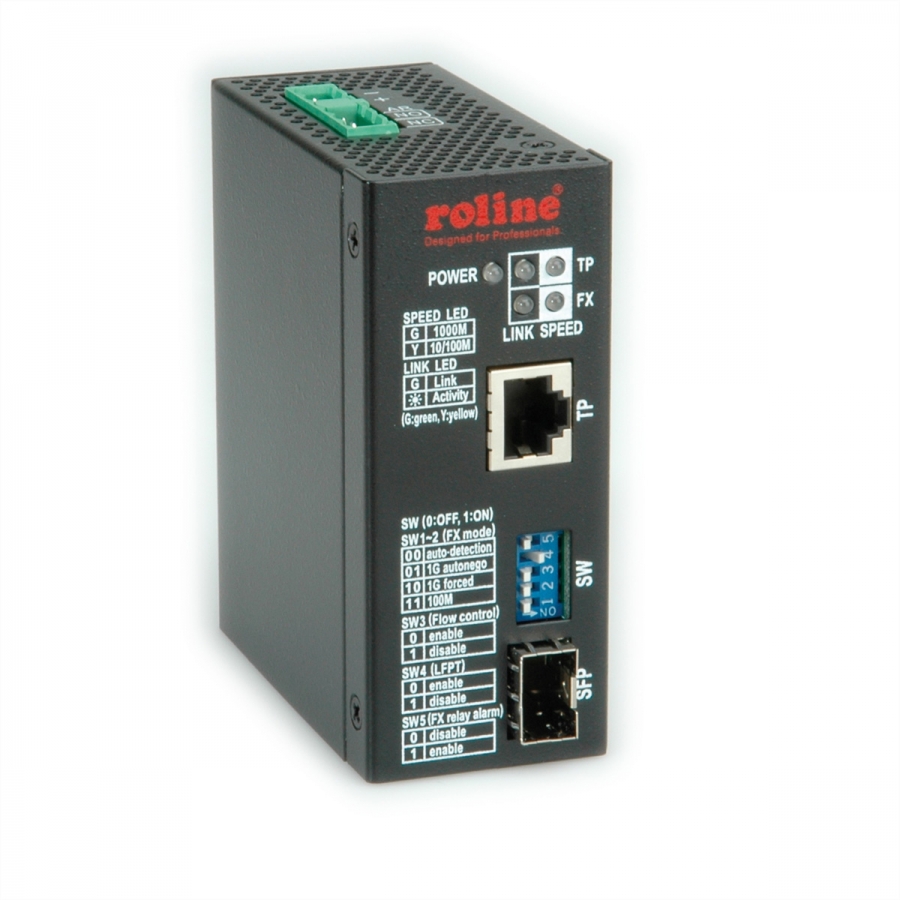

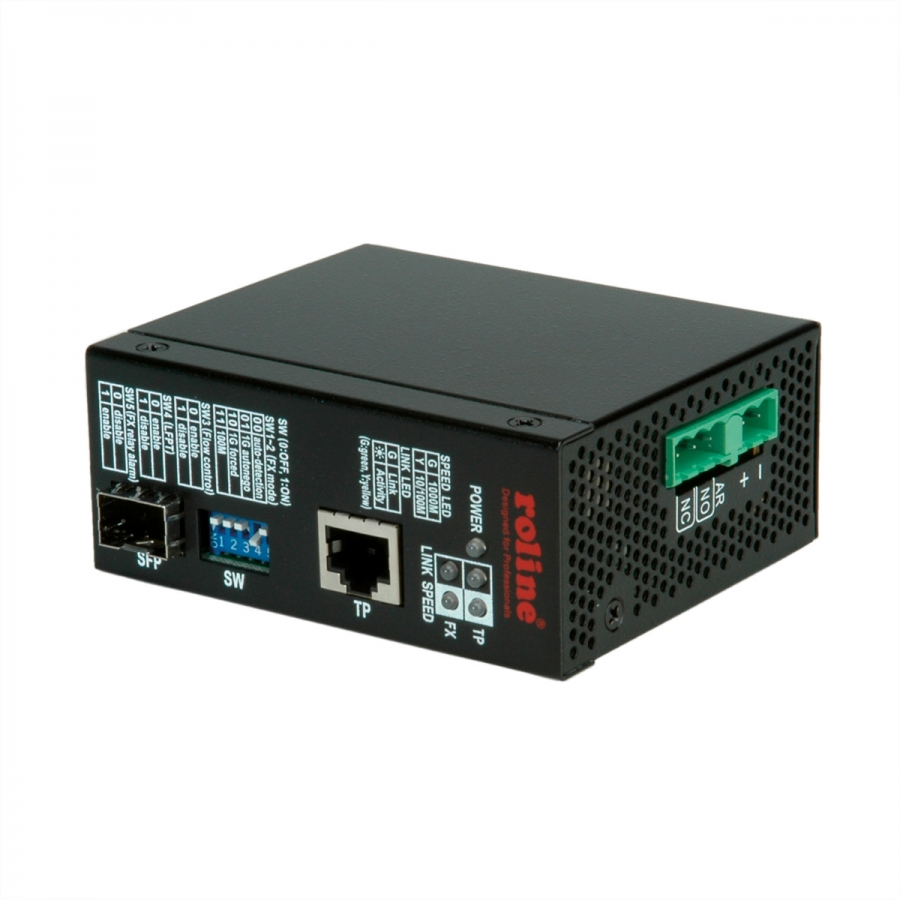

ROLINE Industrial Converter, 10/100/1000T - 100/1000 Fiber

ROLINE

21.13.1149

New

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Tri-speed 10/100M/1Gbit/s copper to dual-speed 100M/1Gbit/s fiber conversion
  • Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z standard
  • Choice for SFPs for 100Base-FX (21.14.3499) or for Gigabit Ethernet (Mini-GBICs: 21.14.3500, 21.14.3501, 21.14.3502)
  • Support full wire speed conversion for Gigabit copper to Gigabit fiber SFP port
  • Support auto-negotiation with link partners
  • Supports auto-negotiation 10/100Mbps or forced mode on the copper port
  • Auto-MDI/MDIX on the copper port
  • Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di applications
  • Provide dual-speed SFP on fiber port for mounting variety of fiber options
  • Provide important LFPT (Link Fault Pass Through) media converter function
  • Support Jumbo frame conversion
  • Energy efficient ethernet (EEE) support
  • Alarm events relay output
  • Operation temp. : - 20 ºC - +70 ºC
  • Supports DIN rail mounting
  • DC Input via terminal block
  • As PSU u order : 21.13.1226



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
height95 mm
width40 mm
depth80 mm
Weight341.48 g
Current catalog editionC21-01.12

Industrial networks
