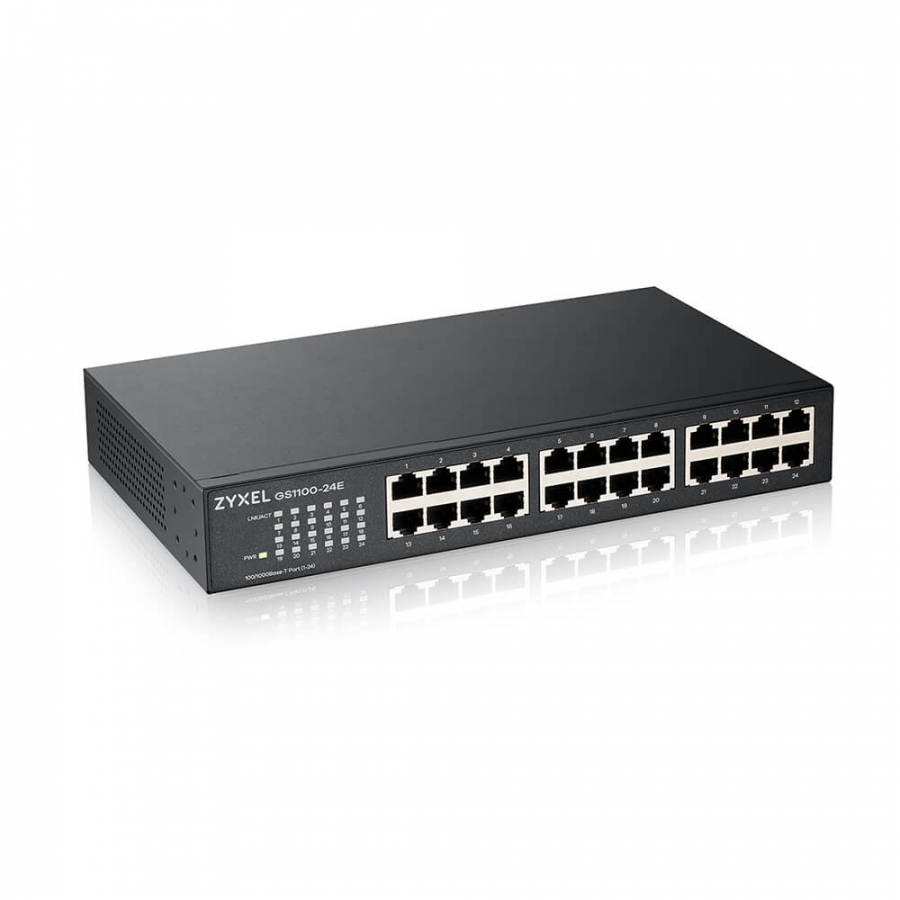

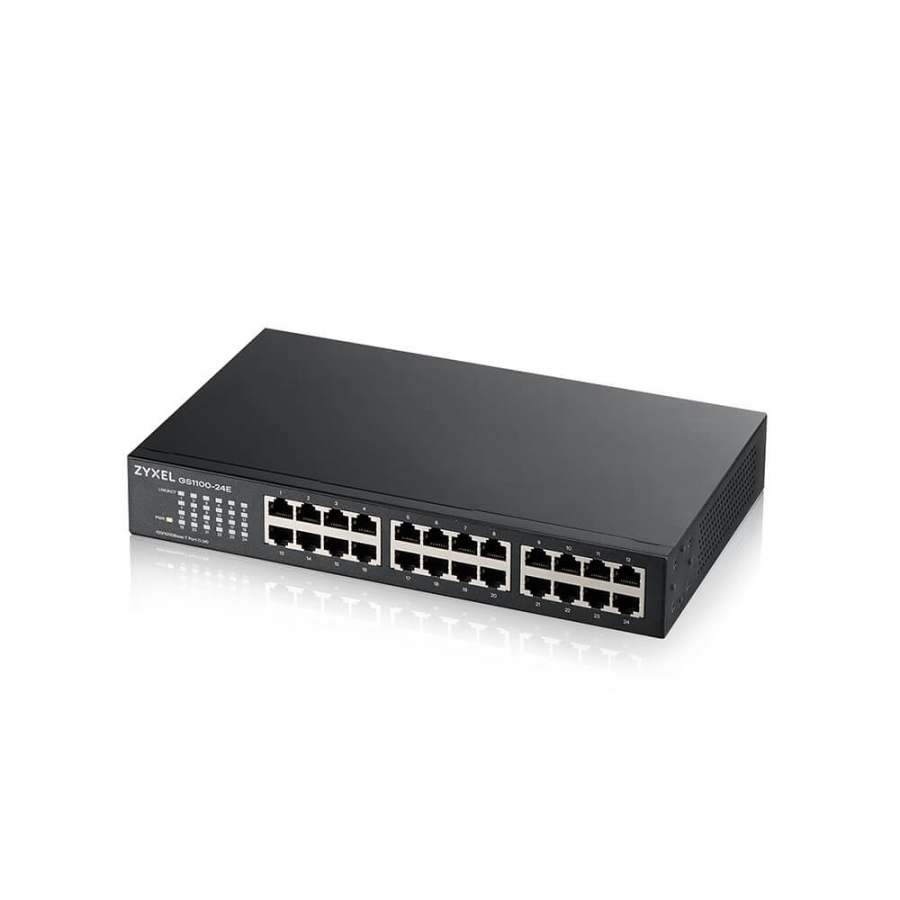

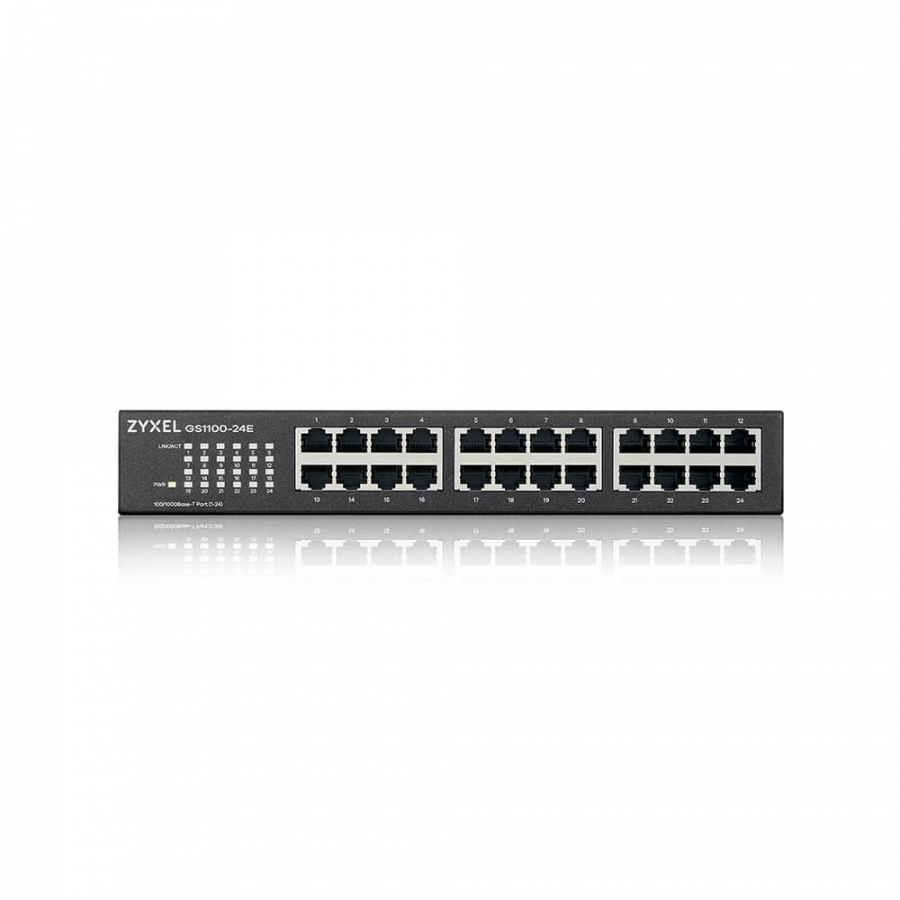

Zyxel Switch 24x GE GS1100-24E V3

ZYXEL

GS1100-24E-EU0103F

New

Plug and play connectivity Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.Whisper quiet operation The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.Energy saving The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.Support PoE+ The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.Flexible choices for your office The GS1100 Series switch offers multiple options including 8-port, 16-port, and 24-port for diversified office applications.

Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Auto MDI/MDI-XY
MAC address table8000 entries
Switching capacity48 Gbit/s
Forwarding rate35.7 Mpps
Jumbo frames10000
Packet buffer memory0.525 MB
Rack mountingY
Product colourBlack
LED indicatorsY
Wall mountableY
CertificationLVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH
FanlessY
Mean time between failures (MTBF)366919 h
Power supply includedY

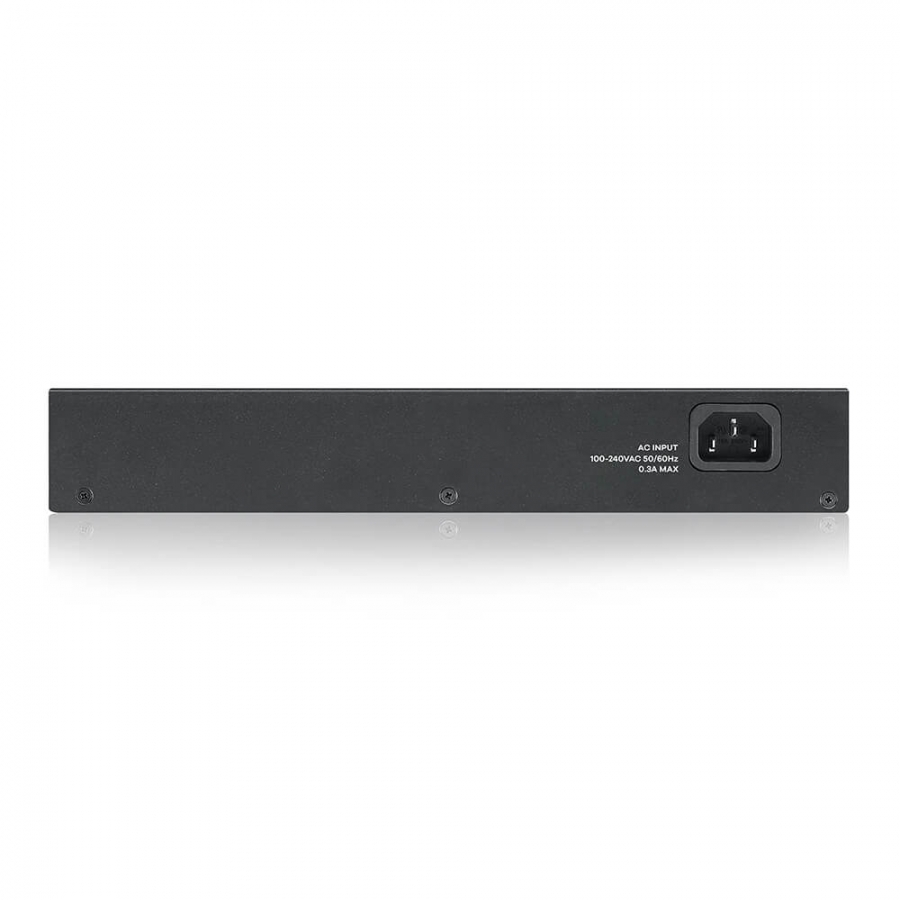

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)13 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Heat dissipation43.53 BTU/h
Width267 mm
Depth162 mm
Height42 mm
Weight1.5 kg
Cables includedAC
Rack mount kitY
Harmonized System (HS) code85176990
