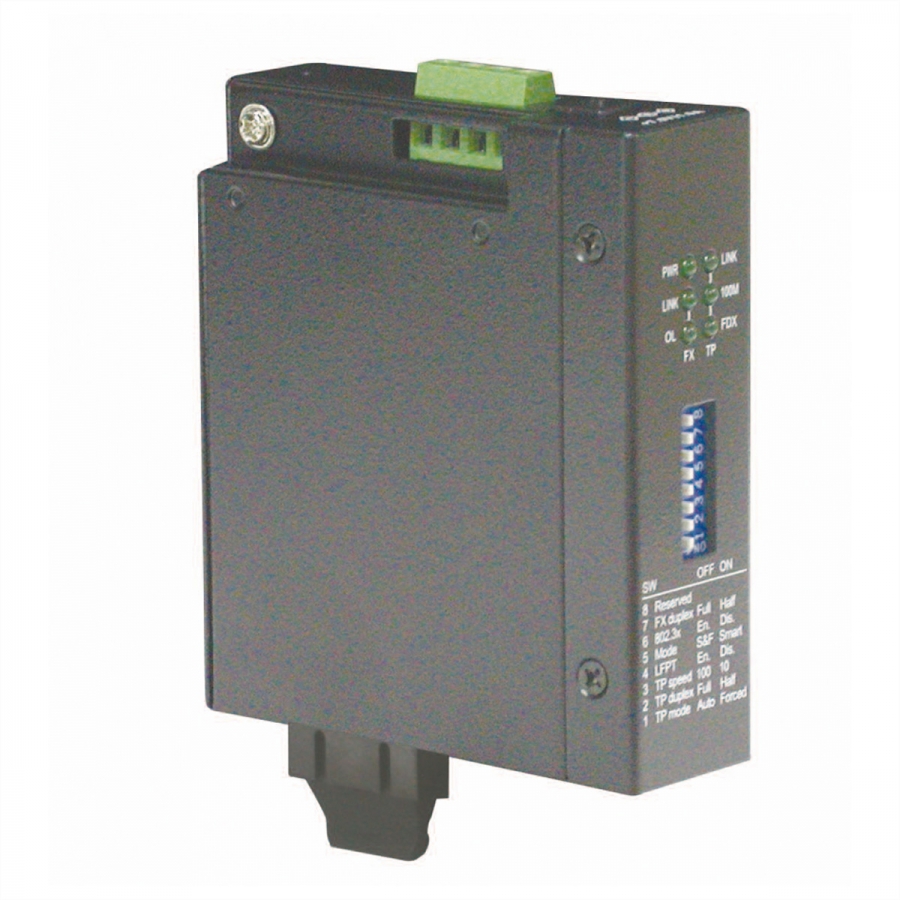

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC

ROLINE

21.13.1143

New

  • Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Support auto-negotiation 10/100Mbps or forced mode on TP copper port
  • Auto MDI/MDI-X crossover function on the TP copper port
  • Provide Link Fault Pass Through function
  • Provide comprehensive manual configuration settings
  • Transparent conversion to 802.1Q VLAN tagged packets
  • Provides Far End Fault function on FX (fiber) port
  • Low power consumption
  • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
  • Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
  • Operating Temperature: - 10 °C - +70 °C
  • Supports DIN rail mounting
  • Industrial-rated Emission and Immunity performance
  • Dimensions: 28 x 82 x 95 mm (WxDxH)
  • As according Power Supply Unit we recommend 21.13.1226



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
RJ-45 Port (Mbps/s)10/100
Fibre Ports (Mbps)100
Quantity of RJ45 ports1
Quantity of fibre SC ports1
FibreMultimode
Ethernet fibre standard100Base-FX
Max. range 50 µm fibre2 km
Max. range 62,5 µm fibre2 km
Managed
Technical particularity- 10 ºC - +70 ºC
height95 mm
width28 mm
depth82 mm
Weight277.2 g
Current catalog editionC21-01.11
