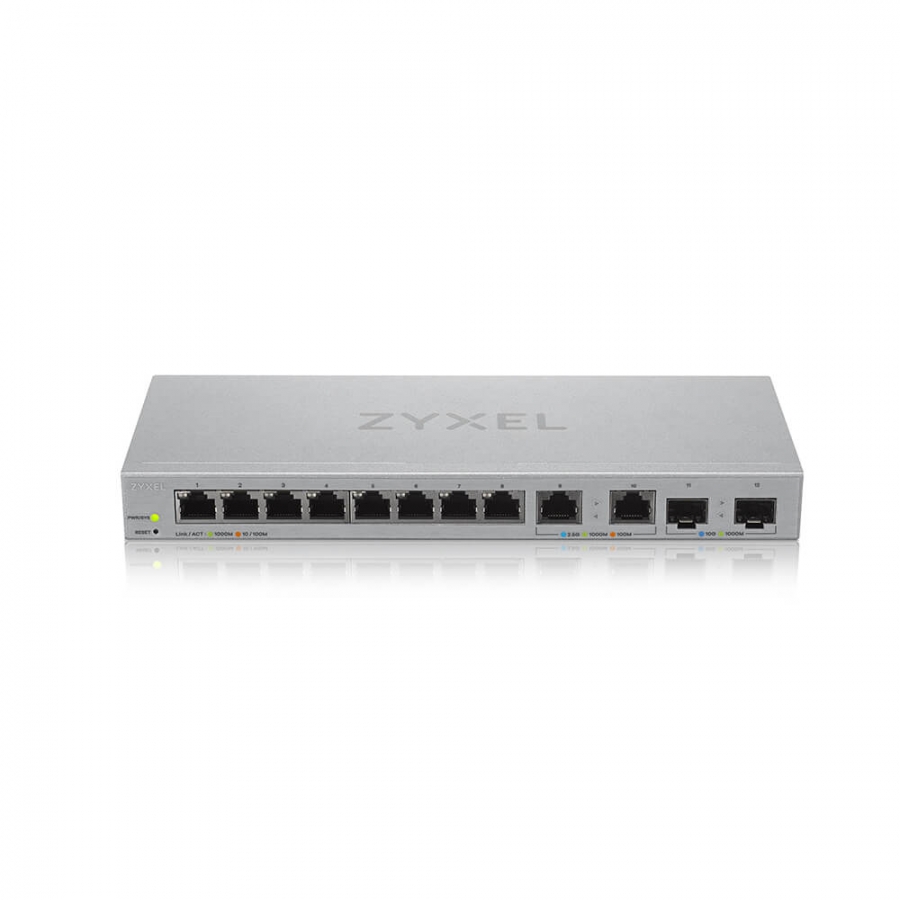

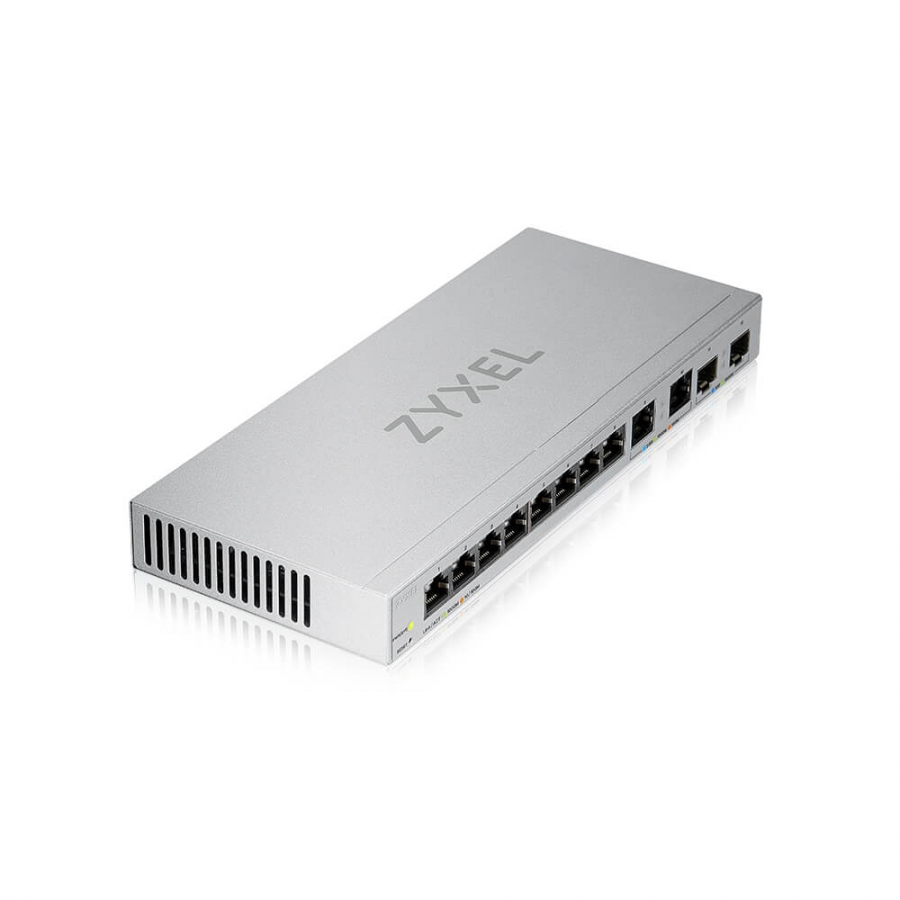

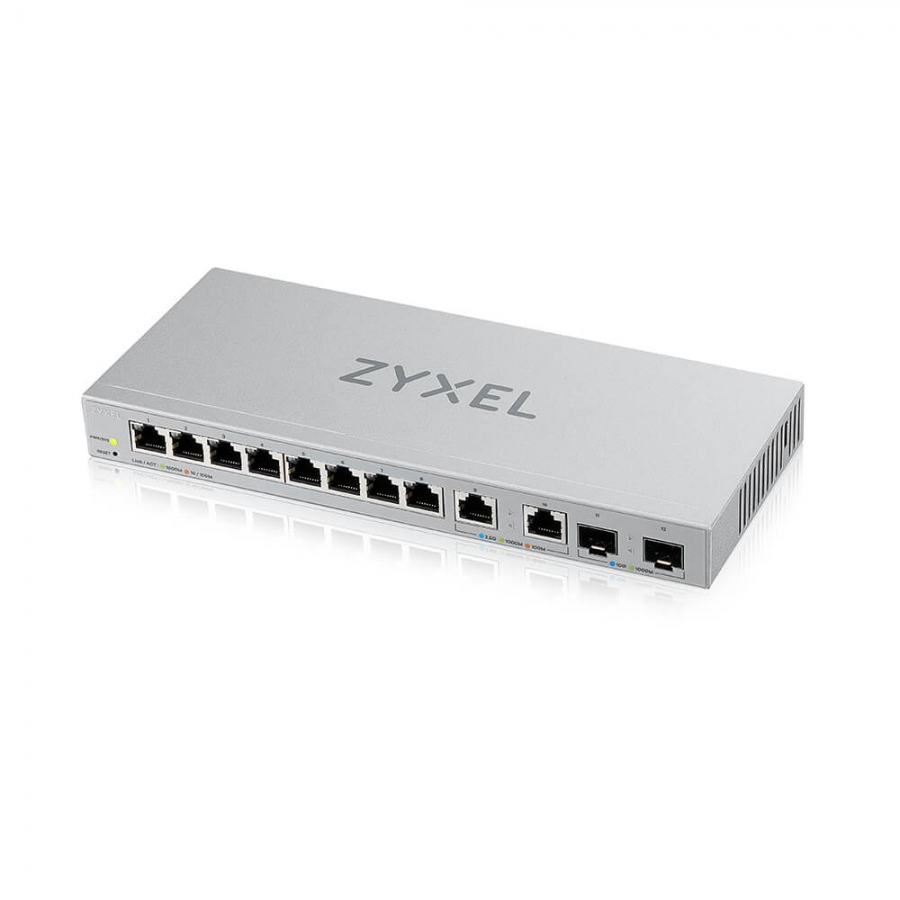

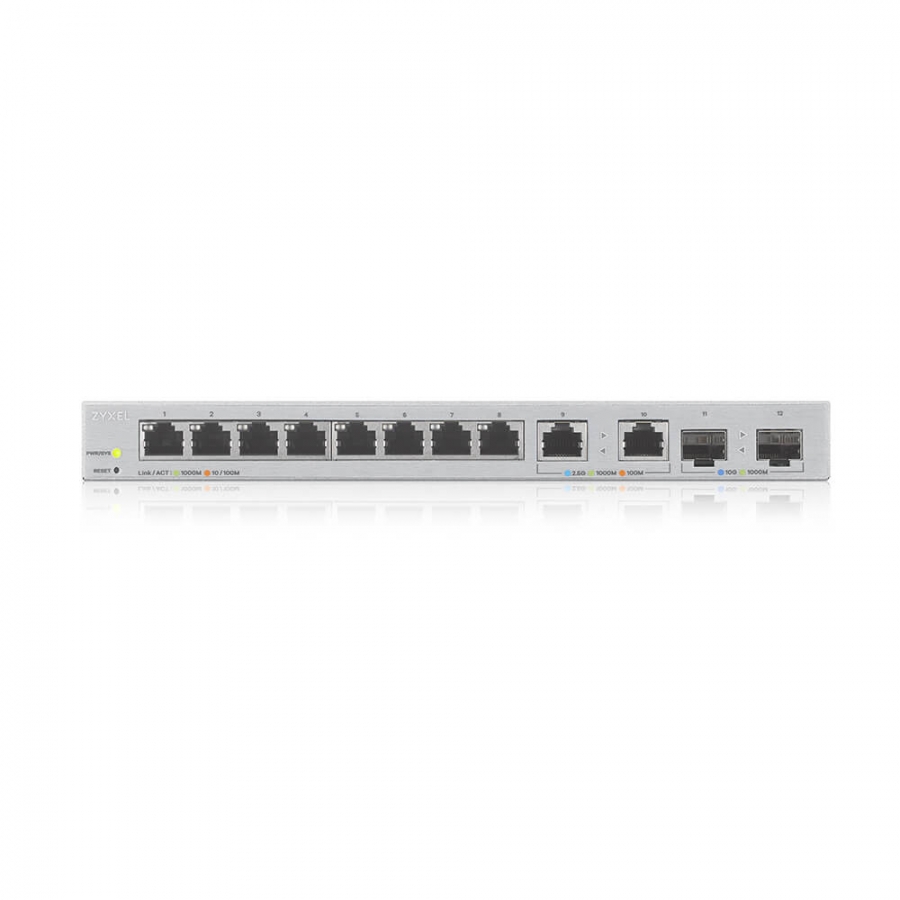

Zyxel Switch 12x GE XGS1210-12 Managed

ZYXEL

XGS1210-12-ZZ0101F

New

The Zyxel XGS1210-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with an easy-to-use Web GUI allowing users to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simplified management over a variety of home to office environments.Maximums the flexibility for your network. The XGS1210-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.Experience hyper-fast 2.5G networking! Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file10G SFP+ ultra-speed uplink Provide two SFP+ ports compatible with 10GbE and which offers higher transmission speeds and get customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.Easy management with intuitive GUI XGS1210-12 comes with a user-friendly web-based setup wizard that quickly and easily walks you through setup, configuration and management, including configuration backups and firmware upgrades. With a few simple clicks, your network will be up and running, so you can get back to business.Comprehensive smart features XGS1210-12 caters to most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring. Does not require any additional software. Simplified for home and small office users’ network.Saving energy and space. The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Switch typeManaged
Quality of Service (QoS) supportY
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity2
SFP+ module slots quantity2
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Full duplexY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Auto MDI/MDI-XY
Ethernet LAN data rates10,100,1000,2500 Mbit/s
VLAN supportY
MAC address table16000 entries
Switching capacity66 Gbit/s
Forwarding rate49 Mpps
Static routeY
Jumbo frames supportY
Jumbo frames12000
Packet buffer memory1.5 MB
DHCP featuresDHCP client
IGMP snoopingY
Loop protectionY
Multicast supportY
Product colourGrey
Reset buttonY
LED indicatorsY
Power sourceAC/DC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
DC input voltage12 V
Input current1.5 A
Power consumption (max)15.61 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width250 mm
Depth104 mm
Height24 mm
Weight768 g
Package width306 mm
Package depth225 mm
Package height64 mm
Package weight1.22 kg
Harmonized System (HS) code85176990
