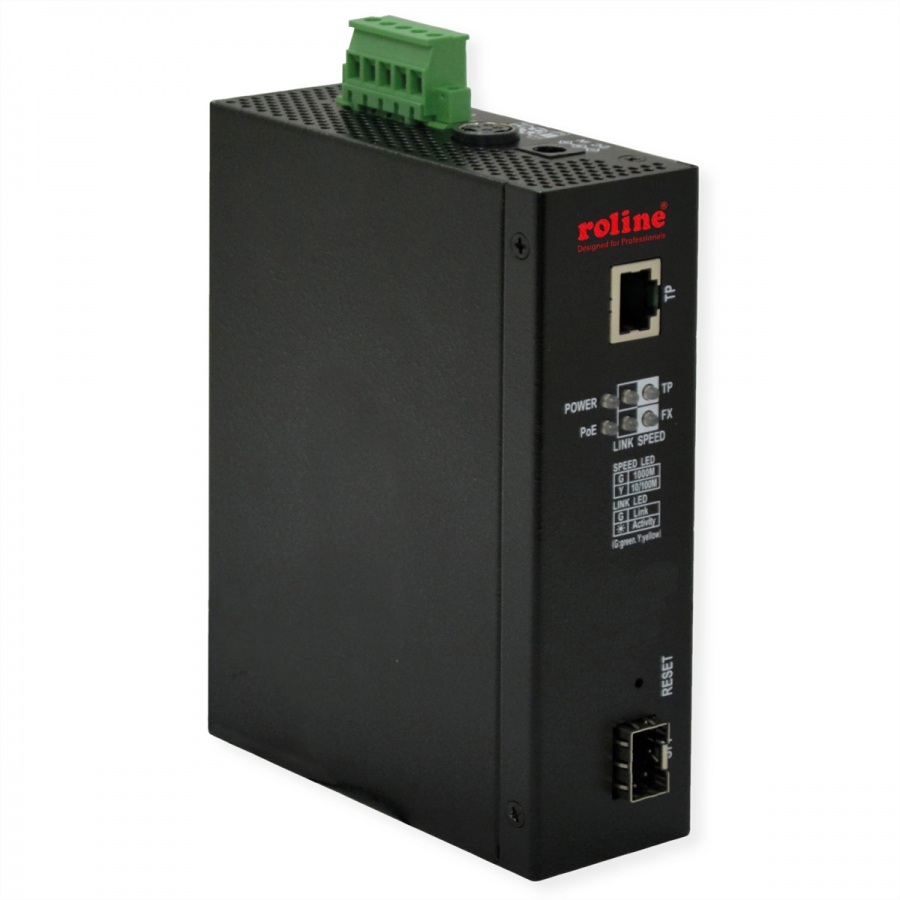

ROLINE Industrial Managed Media Converter Gigabit Ethernet with PoE++ PSE Suppo

ROLINE

21.13.1135

New

  • Industrial Media Converter with PoE++ PSE for general applications
  • Tri-speed 10/100M/1Gbps copper to dual-speed 100M/1Gbps fiber conversion
  • Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3bt standard
  • Support full wire speed conversion for Gigabit copper to Gigabit fiber
  • Provide dual-speed SFP on fiber port for mounting variety of fiber options
  • Provide important LFPT (Link Fault Pass Through) media converter function
  • Support Jumbo frame conversion
  • Energy Efficient Ethernet (EEE) support
  • Alarm events relay output
  • Optical Power Alarm (OPA) function
  • Auto Laser Shutdown (ALS) function
  • Fiber support for multimode, short reach up to long reach single mode fiber, Bi-Di applications
  • Web-based configuration management support
  • Support SNMP management
  • Provide variety of PoE options for different power level applications
  • PoE shutdown protection for incompliant PD, disconnection, over-current and short-circuit



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
RJ-45 Port (Mbps/s)1000
Fibre Ports (Mbps)1000
Quantity of RJ45 ports1
Quantity of fibre LC ports1
FibreMultimode
Ethernet fibre standard1000Base-SX
Max. range 50 µm fibre500 m
Max. range 62,5 µm fibre220 m
Managed
Technical particularity- 20 ºC - +70 ºC
Height40 mm
Width106 mm
Depth140 mm
Height of packaging (single piece)50 mm
Width of packaging (single piece)150 mm
Depth of packaging (single piece)200 mm
Package weight (single piece)0.6 kg
Current catalog editionC22-New
