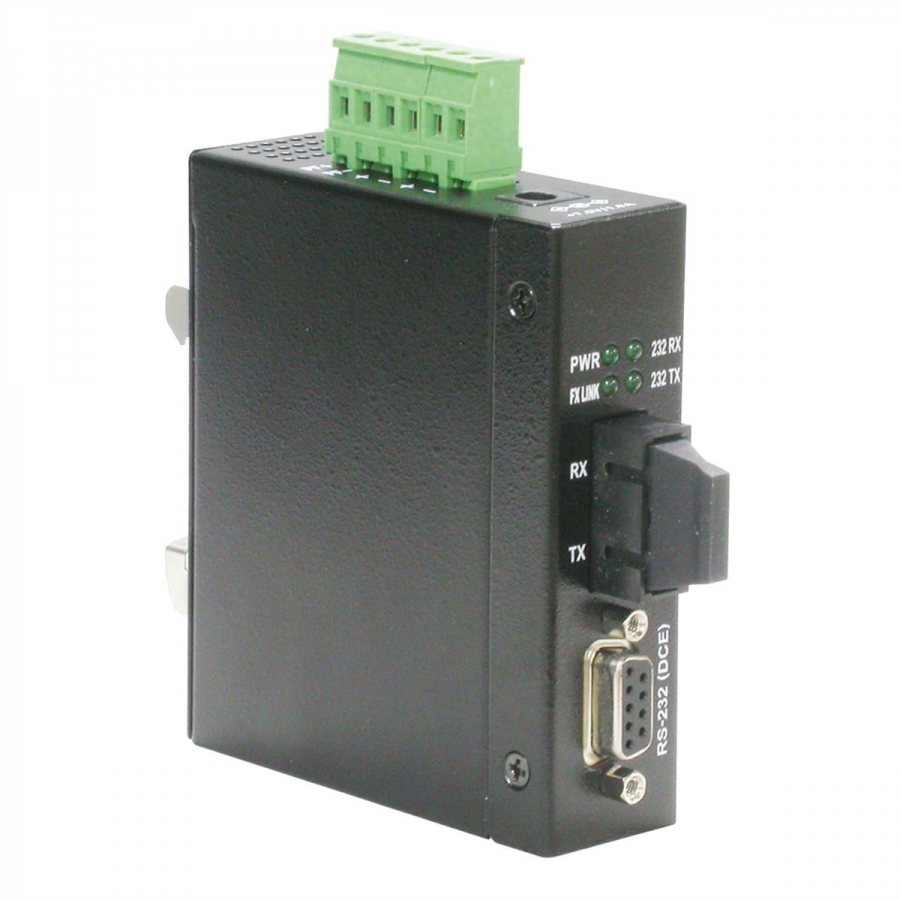

ROLINE Industrial Converter RS232 - Multimode Optical Fiber, SC

ROLINE

21.13.1141

New

The converter is designed to provide the most versatile connection possible between 2 RS-232 serial equipment using fiber optic cable.

The converter supports transparent conversion for not only RS-232 data lines, but also all RS-232 control signals. It also supports all RS-232 baud rates with no need for user configuration. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. Further, more designs such as signal protection, wide operating temperature range, wide power voltage range are also provided to suit for more industrial applications.

  • Transparent conversion for all RS-232 signals
  • Designed for industrial environments with:
- RS-232 surge, ESD, and isolation protection
- DIN-rail mounting support
- Wide power voltage range support
- Terminal block and DC plug (6.3 mm/2.0 mm) power connectors
- Wide operating temperature range
- Industrial-rated emission and immunity performance
- Fanless, rugged metal housing

  • Power: Input: 7-30 VDC (2.4 W max.)
  • Operating Temperature: - 20 °C - +70 °C
  • As according power supply we recommend using DIN-rail power supply unit 21.13.1226



ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
Quantity of fibre SC ports1
FibreMultimode
Max. range 50 µm fibre2 km
Max. range 62,5 µm fibre2 km
Managed
Technical particularity- 20 ºC - +70 ºC
Weight266.3 g
Current catalog editionC21-01.11
