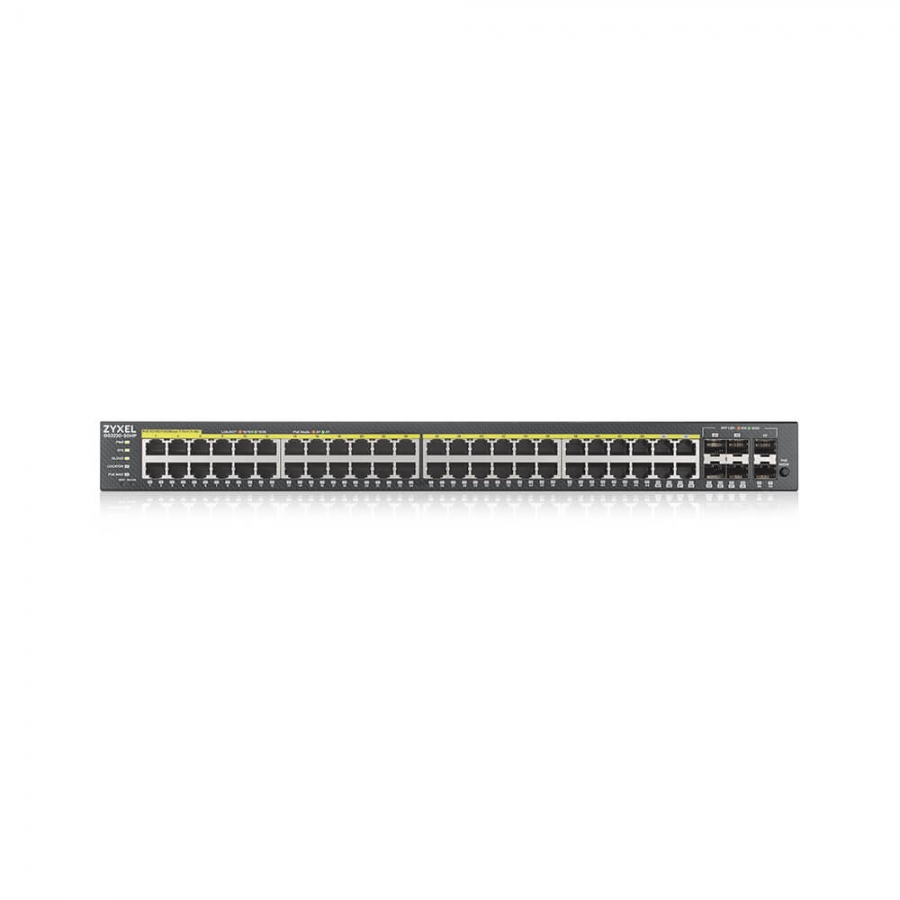

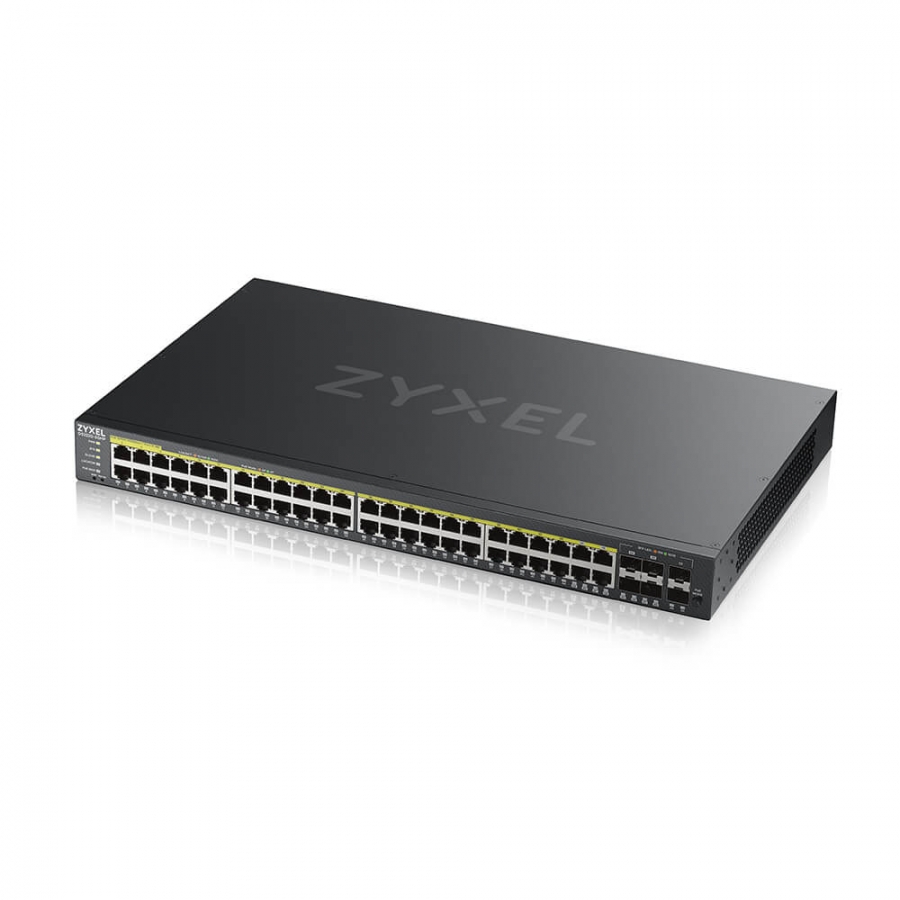

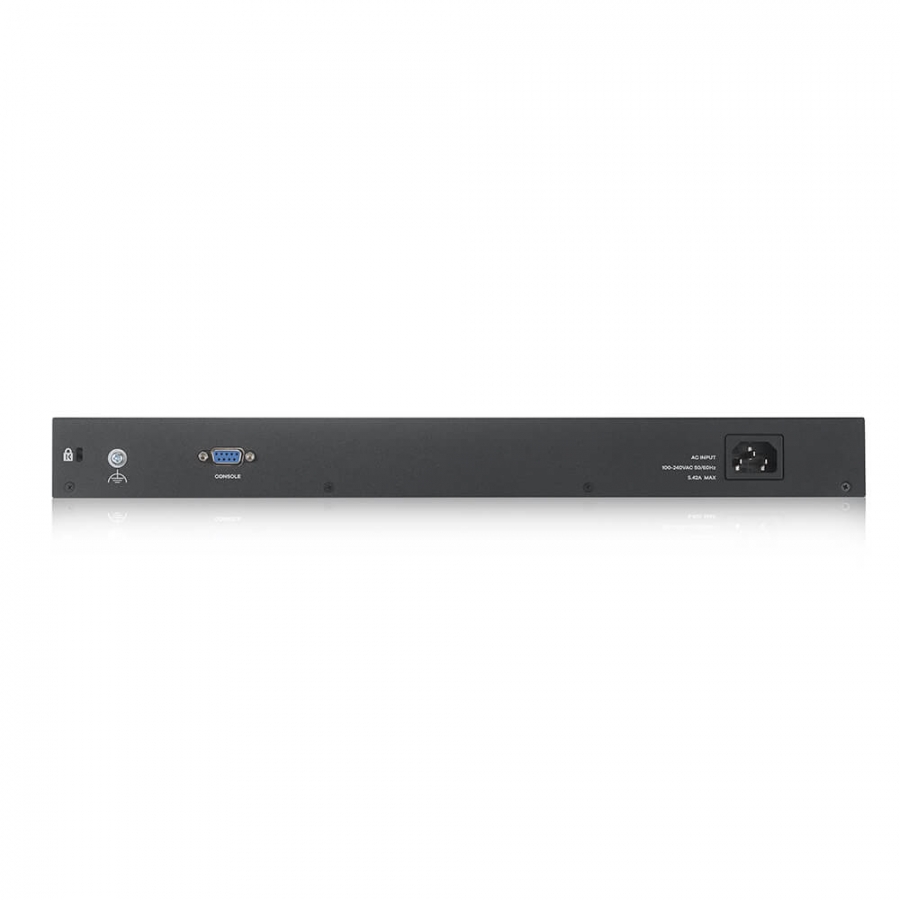

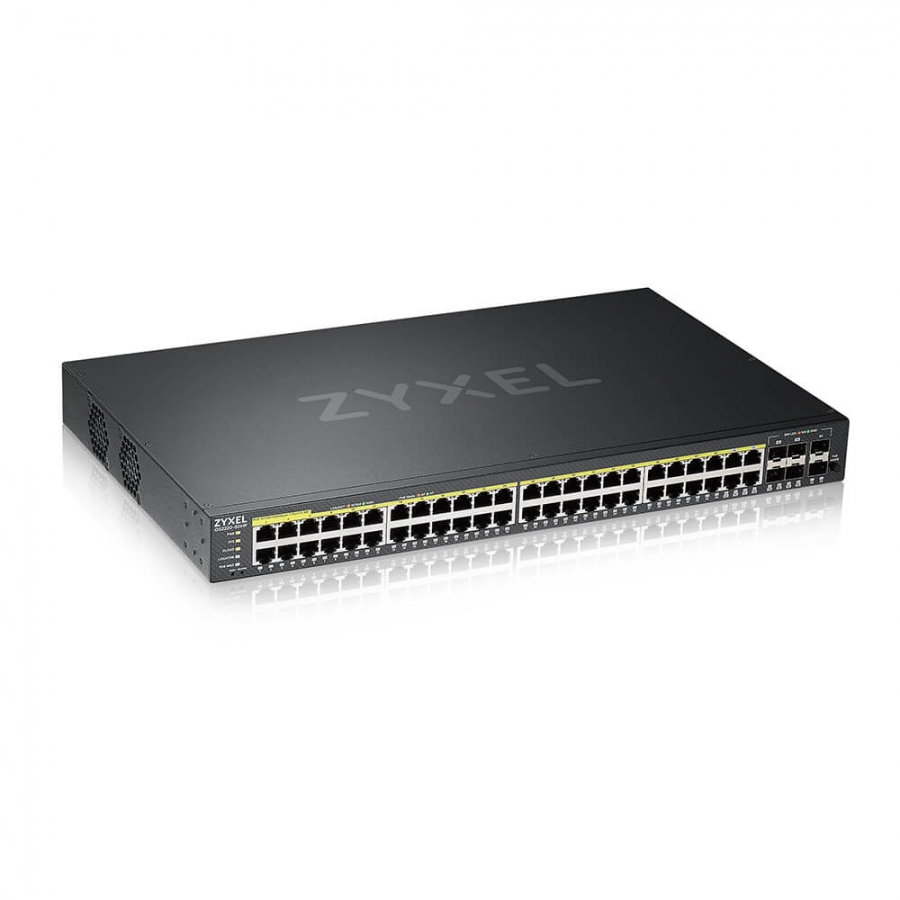

Zyxel Switch 50x GE GS2220-50HP 44Port+ 4xSFP/Rj45+

ZYXEL

GS2220-50HP-EU0101F

New

Designed for converged networks GS2220 Series Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.Industry first tri-mode switch. The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.Powerful L2 features. The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.Manage it your way! The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.Intelligent PoE+ powers more devices. The intelligent consumption mode delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. The switch supports the IEEE 802.3at providing a maximum of 30W per port and 180W total budget.Experience whisper-silent operations. This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.Flexible port combination. The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
Configuring Location Settings (CLI)Y
System event logY
Basic switching RJ-45 Ethernet ports quantity44
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Combo SFP ports quantity4
Fiber ports quantity2
Fiber optic connectorSFP
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Copper ethernet cabling technology10BASE-TX, 1000BASE-T
Port mirroringY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Rate limitingY
Spanning tree protocolY
VLAN supportY
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Fiber ethernet cabling technology1000BASE-X
MAC address table16000 entries
Switching capacity100 Gbit/s
Forwarding rate74 Mpps
Packet buffer memory1.5 MB
DHCP featuresDHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)Y
IGMP snoopingY
Security algorithmsSNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC address filteringY
AuthenticationGuest VLAN, MAC-based authentication
Authentication typeIEEE 802.1x, RADIUS
Multicast supportY
Rack mountingY
Product colourBlack
CertificationLVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Internal memory256 MB
Flash memory32 MB
Noise level49.5 dB
Firmware upgradeableY
Mean time between failures (MTBF)466921 h
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)474.3 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity48
Total Power over Ethernet (PoE) budget375 W
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Heat dissipation1617.363 BTU/h
Width441 mm
Depth270 mm
Height44 mm
Weight4.1 kg
Cables includedAC
Package width616 mm
Package depth355 mm
Package height107 mm
Package weight5.25 kg
Harmonized System (HS) code85176990
