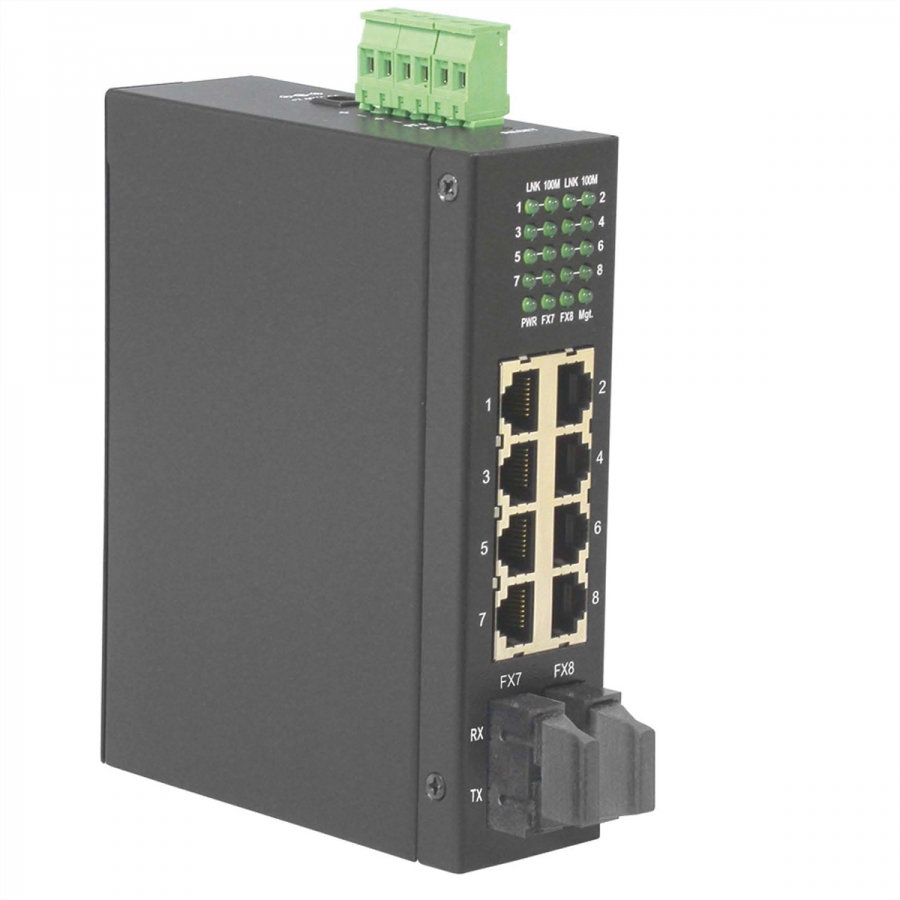

ROLINE Industrial Switch, 6x RJ-45, 2x SC, unmanaged

ROLINE

21.13.1154

New

  • Fast Ethernet switch with 6x 10/100Base-T ports and 2x 100Base-FX ports
  • Wide operating temperature range for temperature critical
  • Support DIN rail mounting
  • Industrial-rated Emission and Immunity performance
  • Provides wire speed store-and-forward switching
  • Supports IEEE 802.3x flow control for full-duplex operation
  • Supports Back-pressure flow control for half-duplex operation
  • Power: Input: 7 - 30V DC, Consumption: 6.5W (max.)
  • Operating Temperature: - 20 °C - +70 °C
  • DC Input via terminal block or DC power jack (6.3mm/2.0mm)
  • Dimensions: 140 X 106.5 X 40mm (WxDxH)
  • As according Power Supply Unit we recommend NDR-75-24 (21.13.1311)



ManufacturerROLINE
Product groupNetwork Switches
Product typeFast Ethernet Switch
Colourblack
Network standardFast Ethernet
LAN (Mbps)10/100
Quantity of ports8
Fast Ethernet Ports RJ-456
Fast Ethernet Ports Fibre2
Mounting formDIN Rail
Management
Stackable
Dimensions (HxWxD)106 x 40 x 140 mm
Power supply unit (internal/external)External
Mains connectionLoose cable / screw terminals
Operating temperature min.-20 °C
Operating temperature max.70 °C
Height106 mm
Width40 mm
Depth140 mm
Weight555.1 g
Height of packaging (single piece)70 mm
Width of packaging (single piece)150 mm
Depth of packaging (single piece)210 mm
Package weight (single piece)0.654 kg
Current catalog editionC23-01.10
