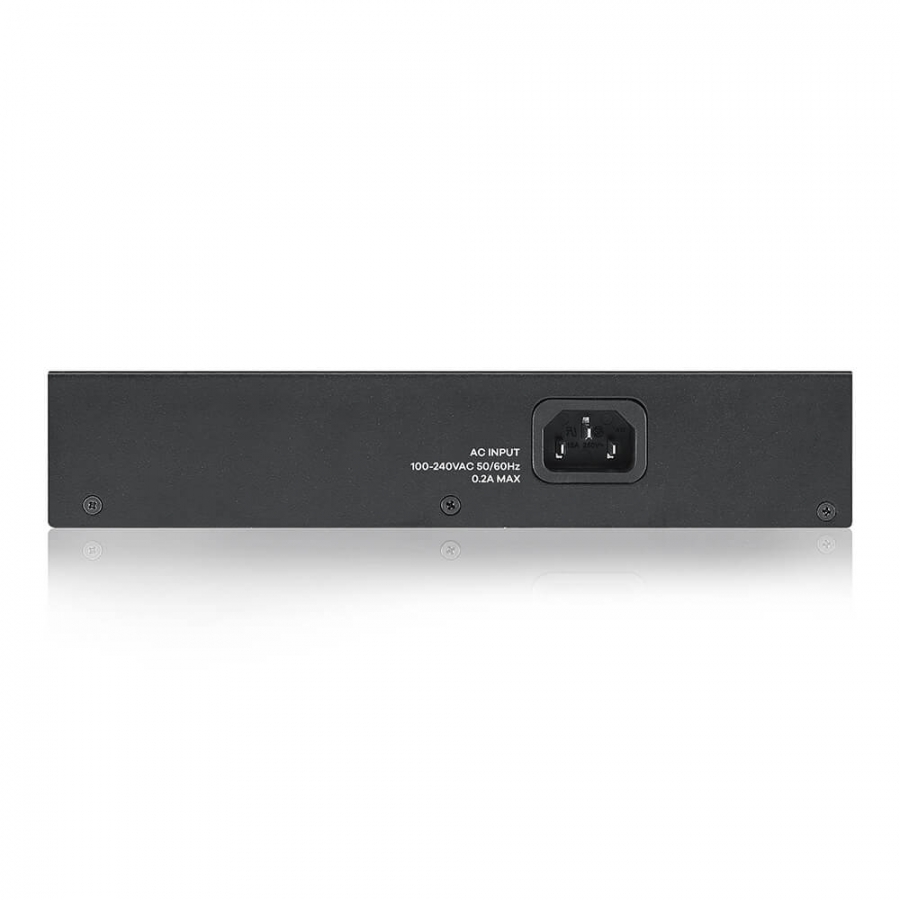

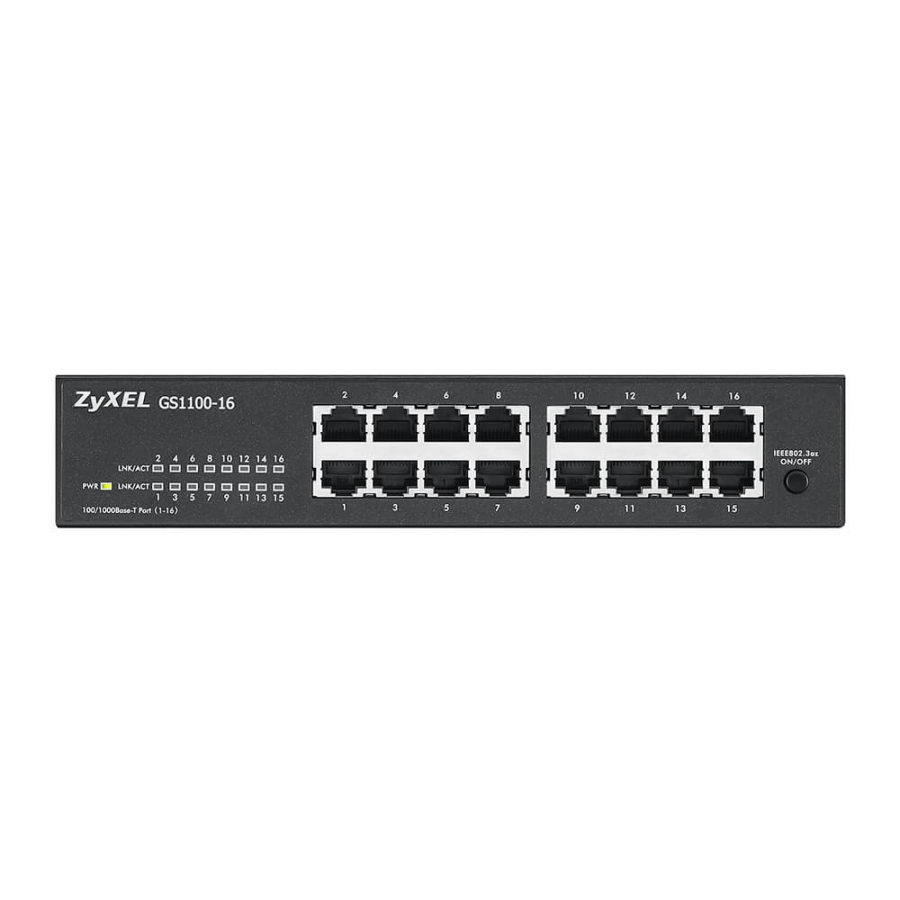

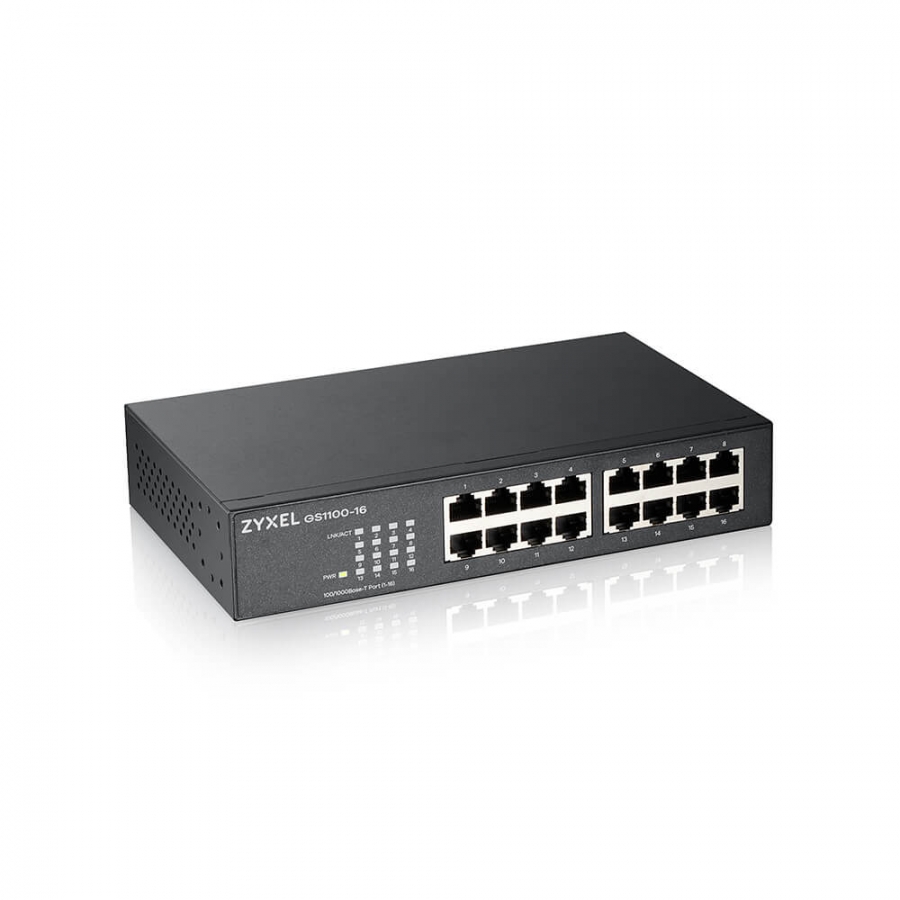

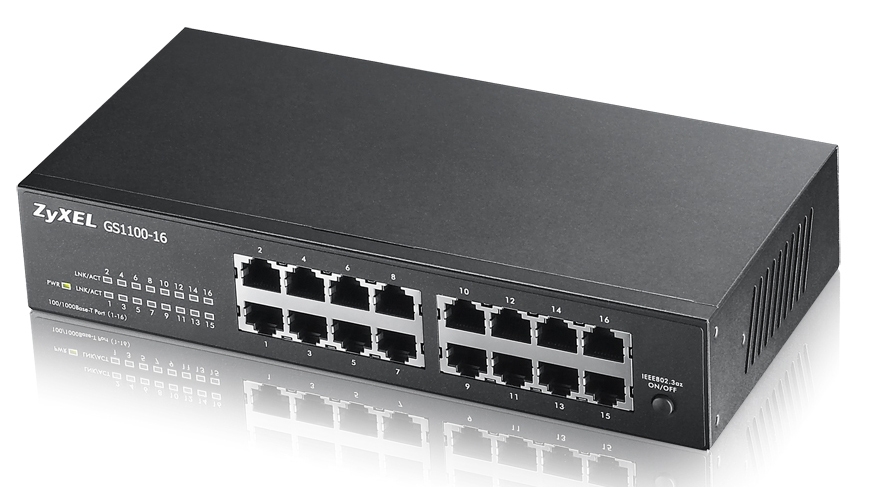

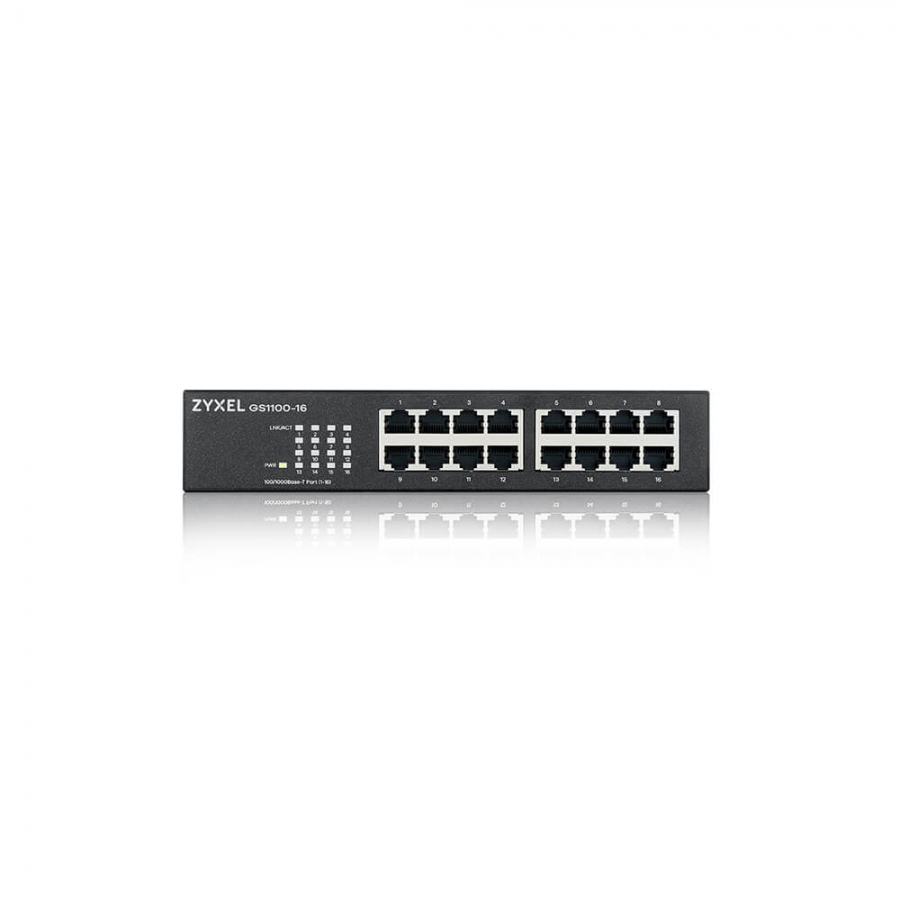

Zyxel Switch 16 Port Gigabit Unmanaged Switch GS1100-16 V3

ZYXEL

GS1100-16-EU0103F

New

Plug and play connectivity Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.Whisper quiet operation The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.Energy saving The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

Switch typeUnmanaged
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Flow control supportY
Auto MDI/MDI-XY
Active link detectionY
MAC address table8000 entries
Switching capacity32 Gbit/s
Forwarding rate23.8 Mpps
Jumbo frames supportY
Jumbo frames9216
Packet buffer memory0.5 MB
Rack mountingY
LED indicatorsActivity, Link, Power
Wall mountableY
Electromagnetic compatibilityCE, FCC, RCM, ICES-003, BSMI
CertificationLVD, BSMI RoHS, REACH
FanlessY
Mean time between failures (MTBF)1156942 h
Power supply includedY
Number of power supply units1
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)10 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Heat dissipation32.86 BTU/h
Width215 mm
Depth133 mm
Height42 mm
Weight19.8 kg
Cables includedAC
Package typeBox
Rack mount kitY
Harmonized System (HS) code85176990
