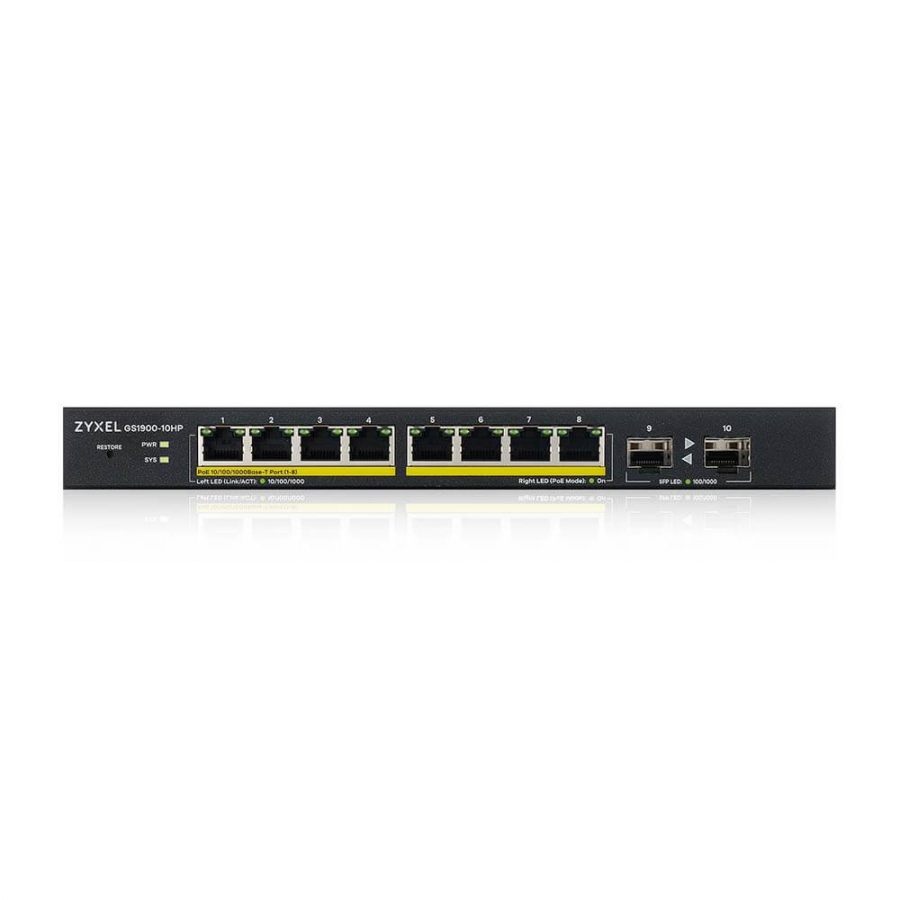

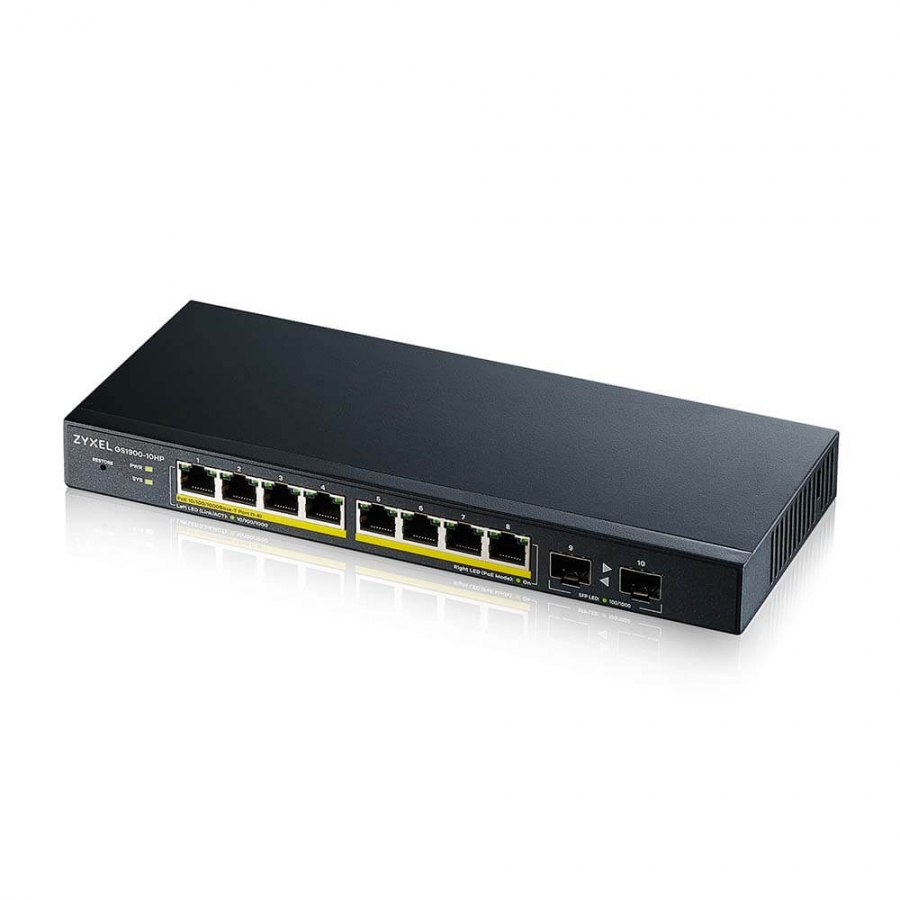

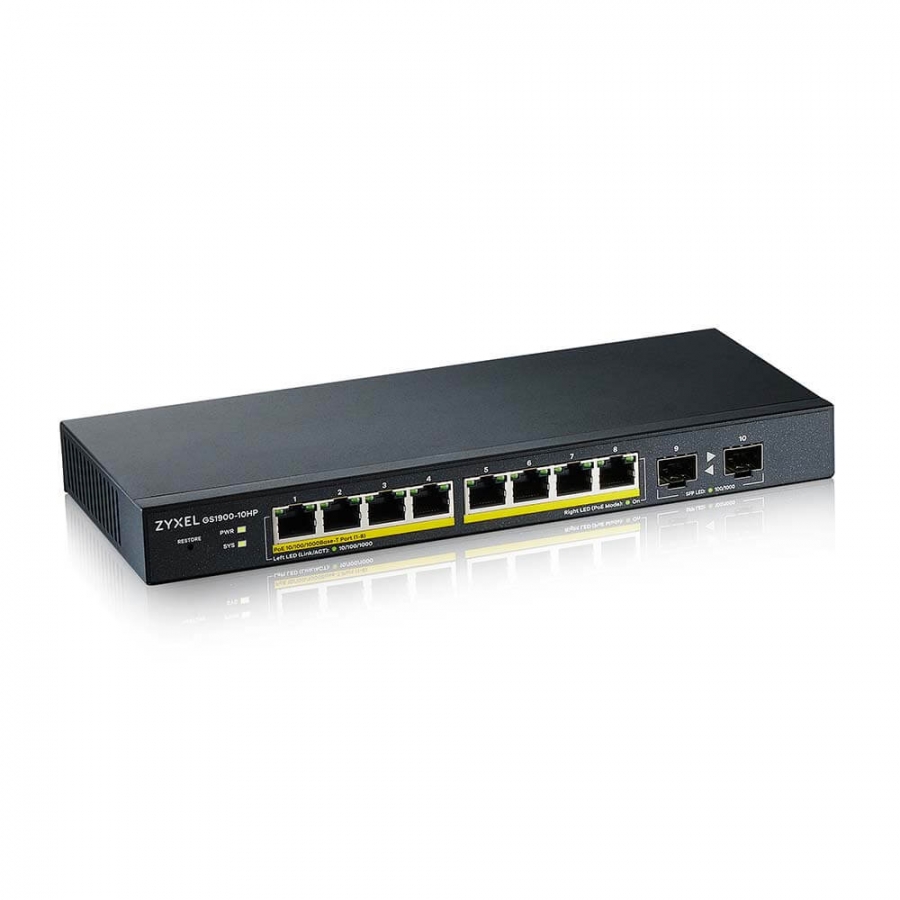

Zyxel Switch 8x GS1900-10HP GbE L2 POE+ /+2 SFP slots

ZYXEL

GS1900-10HP-EU0102F

New

Near silent operation The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.Intelligent PoE+ powers more devices PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.Speedy Gigabit performance—built for SMBs The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
System event logY
MIB supportRFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215 generic traps, RFC 1493 bridge
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
Console portRJ-45
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
VLAN supportY
Virtual LAN featuresVoice VLAN
MAC address table8000 entries
Switching capacity20 Gbit/s
Throughput14.88 Mpps
Jumbo frames9000
DHCP featuresDHCP client
IGMP snoopingY
Security algorithms802.1x RADIUS, SSL/TLS
MAC address filteringY
Management protocolsSNMP, RMON, ICMP, Syslog
Rack mountingN
Product colourBlack
LED indicatorsY
Wall mountableY
CertificationCE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
Mean time between failures (MTBF)800259 h
Power sourceAC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)95.3 W
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity8
Total Power over Ethernet (PoE) budget77 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Width250 mm
Depth104 mm
Height27 mm
Weight720 g
Cables includedAC
