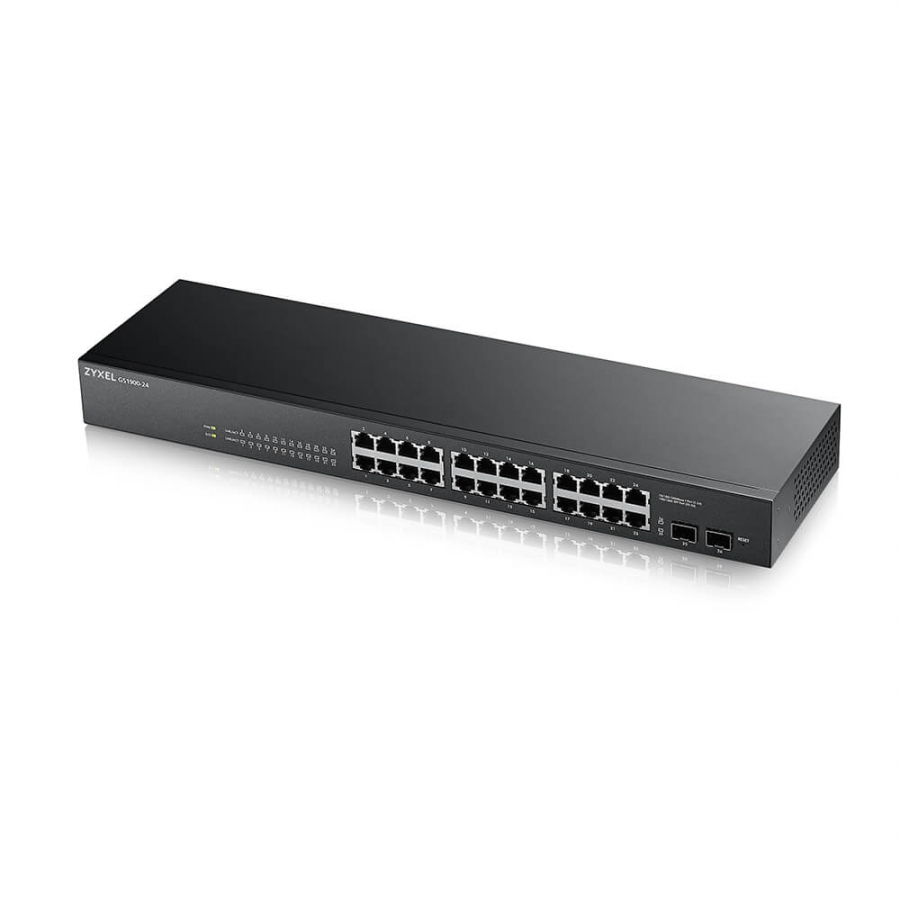

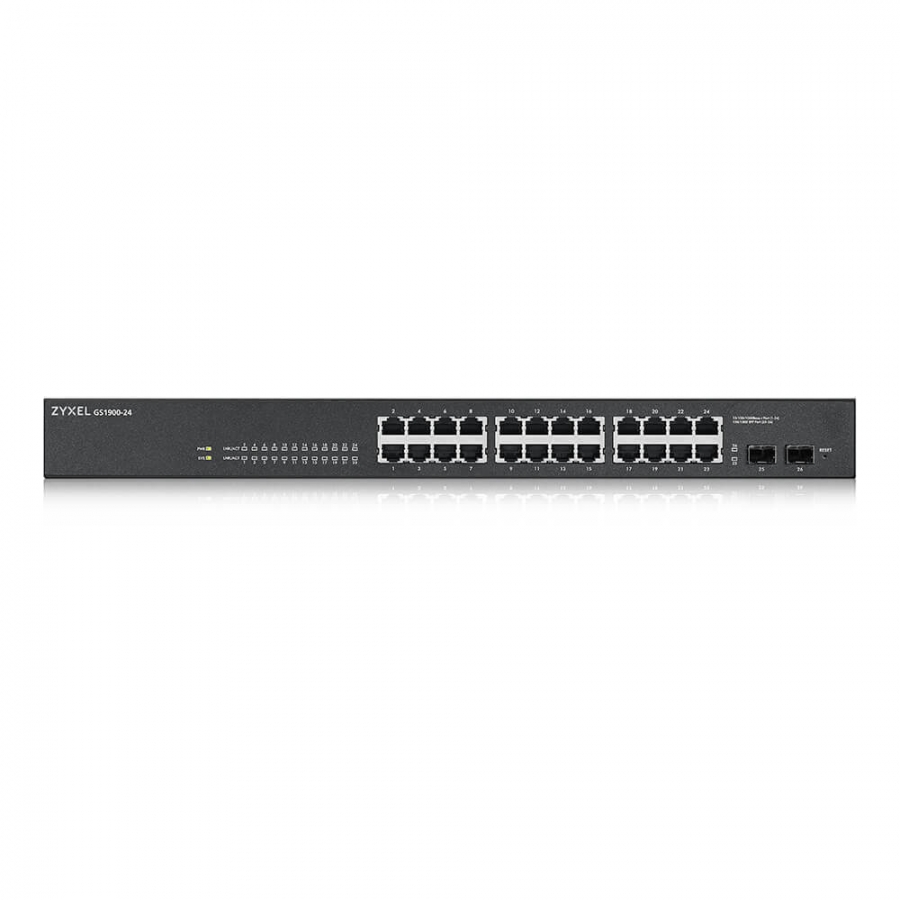

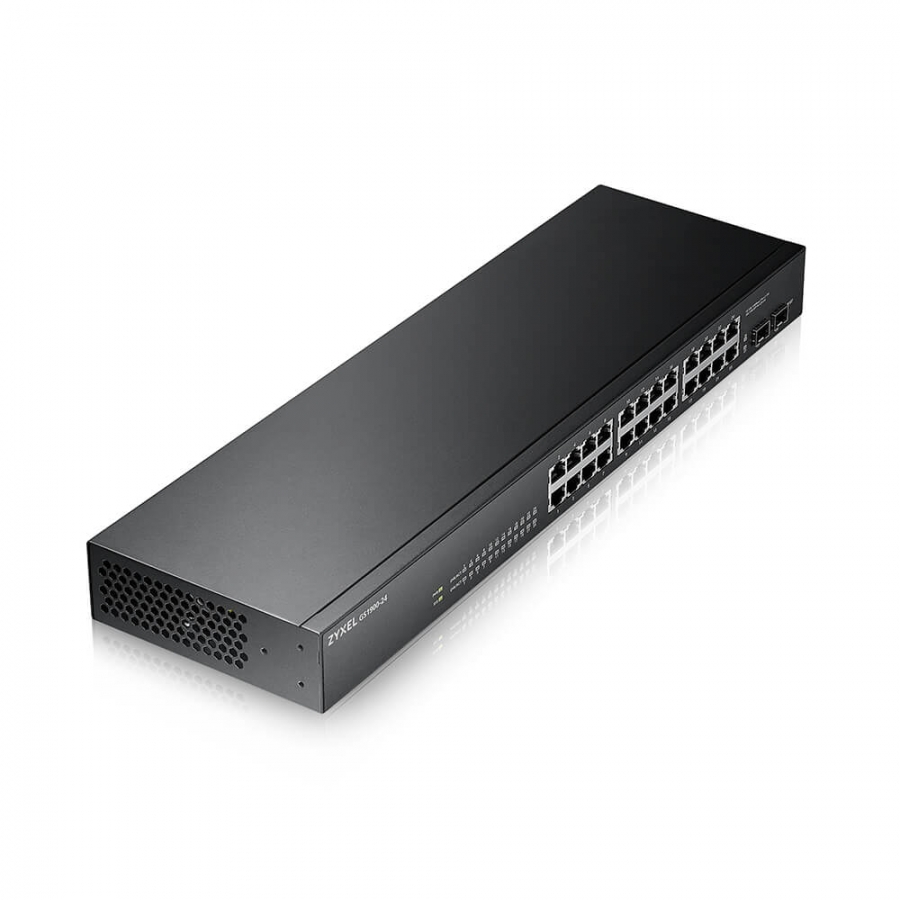

Zyxel Switch 24x GE GS1900-24 V2

ZYXEL

GS1900-24-EU0102F

New

Near silent operation The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.Intelligent PoE+ powers more devices PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.Speedy Gigabit performance—built for SMBs The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.Easy and intuitive management The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
System event logY
MIB supportRFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
Power connectorAC-in jack
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Port mirroringY
Full duplexY
Flow control supportY
Link aggregationY
Spanning tree protocolY
Ethernet LAN data rates10,100,1000 Mbit/s
MAC address auto-learning supportedY
VLAN supportY
Virtual LAN featuresTagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
MAC address table8000 entries
Switching capacity52 Gbit/s
Forwarding rate39 Mpps
Store-and-forwardY
Jumbo frames supportY
Jumbo frames9000
Packet buffer memory0.525 MB
DHCP featuresDHCP client
IGMP snoopingY
Security algorithms802.1x RADIUS
MAC address filteringY
Static port securityY
SSH/SSL supportY
Password protectionY
Authentication typeRADIUS, TACACS+
Rack mountingY
StackableY
Form factor1U
Product colourBlack
Reset buttonY
LED indicatorsY
CertificationEMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant
Mean time between failures (MTBF)432.673 h
Power sourceAC
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)16 W
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%
Heat dissipation55 BTU/h
Width440 mm
Depth131 mm
Height44 mm
Weight2.09 kg
Cables includedAC
Package typeBox
Rack mount kitY
Package width561 mm
Package depth217 mm
Package height82 mm
Package weight2.85 kg
Harmonized System (HS) code85176990
