Zyxel Switch 5x GE GS1005 PoE+

ZYXEL

GS1005HP-EU0101F

New

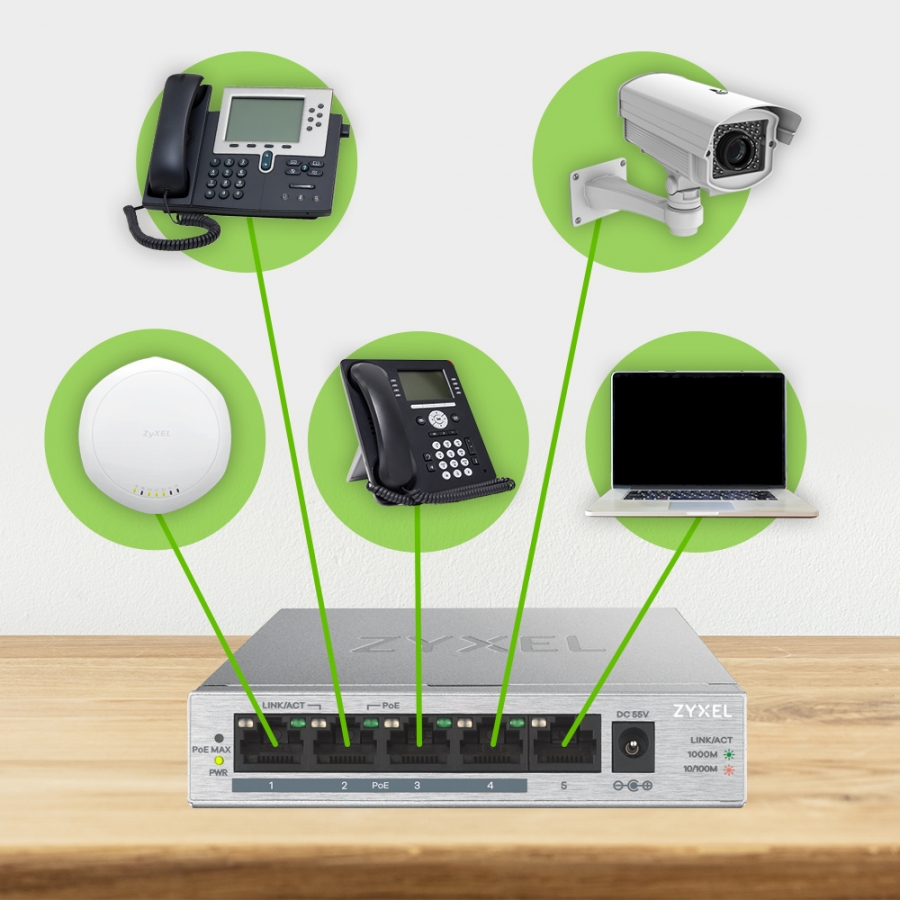

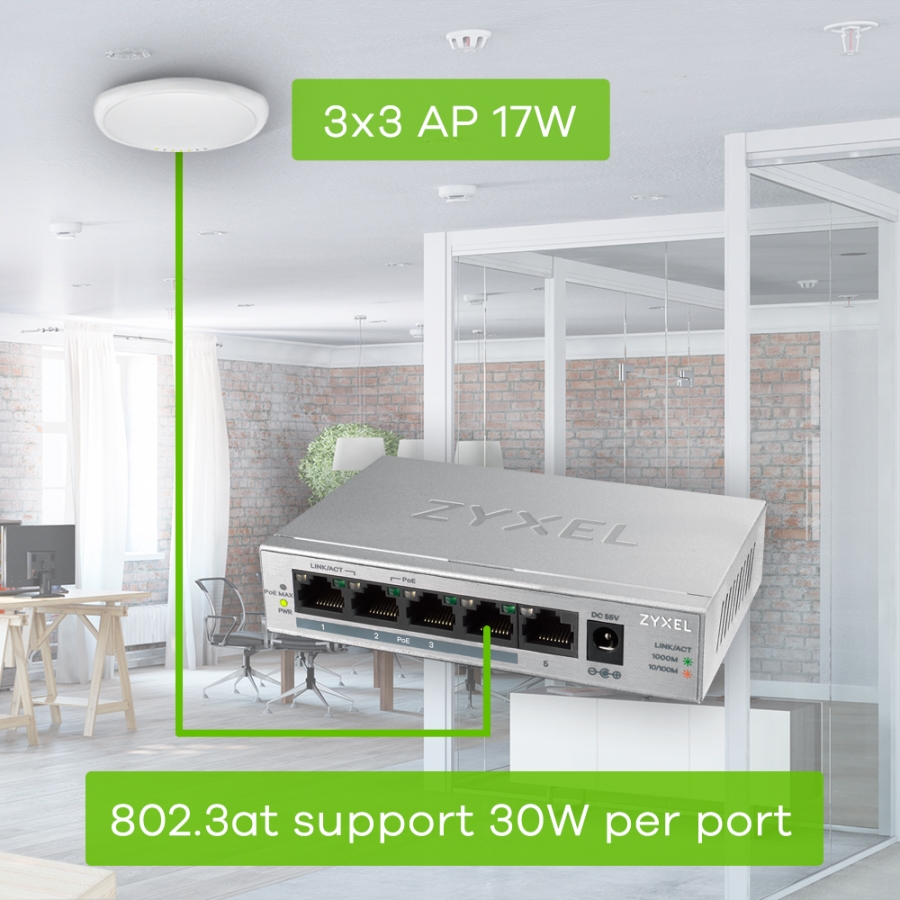

Meeting the price and power demands of small businesses The Zyxel GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.Smart PoE+ 802.3af/802.3at support The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.Easy PoE Budget Management The GS1005HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.Gigabit data transmission and smart features Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!Fanless design Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.Advanced Energy-Savings at Work The GS1005HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Switch typeUnmanaged
Quality of Service (QoS) supportY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Full duplexY
Flow control supportY
Auto MDI/MDI-XY
MAC address table2048 entries
Switching capacity10 Gbit/s
Jumbo frames supportY
Jumbo frames9126
Product colourSilver
CertificationCE, FCC, BSMI, EAC
Buffer size128 KB
AC input voltage100 - 240 V
Output voltage55 V
Output current1.3 A
Power over Ethernet (PoE)Y
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget60 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%
Width121 mm
Depth75 mm
Height26 mm
Weight235 g
Quick start guideY
AC adapter includedY
Package width210 mm
Package depth132 mm
Package height78 mm
Package weight834 g
Harmonized System (HS) code85176990
