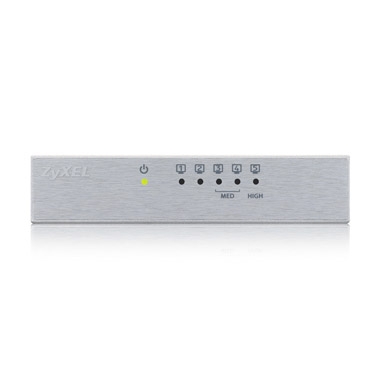

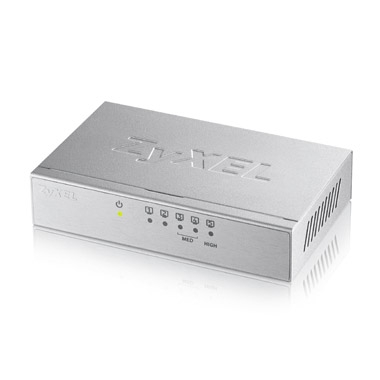

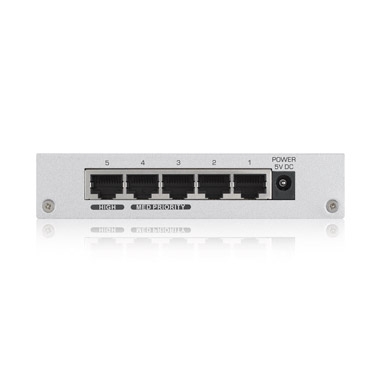

Zyxel Switch 5x GE GS105B v3 Metall

ZYXEL

GS-105BV3-EU0101F

New

Optimized for Smooth VoIP and Data Exchange The ZyXEL GS-105B v3 5-Port Desktop Gigabit Ethernet Switch connects network devices and the home network at blazing Gigabit speed. The newly designed QoS ports guarantee smooth transfer for bandwidthintensive applications such as VoIP and data communications.Compact, sturdy switch with alternative wall-mount design The GS-105B v3 fits any environment. Regardless of desktop or wallmount installation, its sturdy, compact design provides more flexibility for wired home networks.Fast, reliable wired connectivity Without any manual configuration, the GS-105B v3 can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at blazing-fast Gigabit speed.Optimized for smooth VoIP and data exchange The GS-105B v3 has 3 QoS ports with an assigned high- and mediumpriority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time.Green switch saves energy Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-105B v3 provides power-saving benefits without compromising performance. The GS-105B v3 can automatically adjust power consumption according to the number of active, connected network devices and cable length; that is, it consumes less power if fewer network devices are connected and active, or when the length of Ethernet cable is shorter.

Switch typeUnmanaged
Switch layerL2+
Quality of Service (QoS) supportY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportN
Full duplexY
Flow control supportY
Link aggregationY
Rate limitingY
Auto MDI/MDI-XY
MAC address table20000 entries
Switching capacity10 Gbit/s
Store-and-forwardY
Jumbo frames supportY
Product colourSilver
LED indicatorsY
CertificationCE, FCC Class B, BSMI
Buffer size128 KB
AC input voltage100 - 240 V
Output voltage5 V
Output current1 A
Power consumption (typical)2.5 W
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 90%
Width121 mm
Depth75 mm
Height26 mm
Weight229 g
Package width127 mm
Package depth82 mm
Package height95 mm
Package weight381 g
Harmonized System (HS) code85176990
