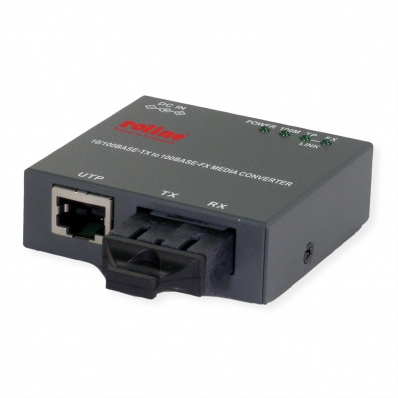

ROLINE 10/100Base-TX to 100Base-FX Media Converter

ROLINE

21.13.1132

New

This converter changes a Fast Ethernet TP port (RJ45) to multimode fiber optic (SC).

  • Supports full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
  • Supports auto-negotiation 10/100Mbps on the copper port
  • Auto MDI/MDI-X crossover function on the copper port
  • Supports IEEE 802.3x flow control
  • Transparent conversion to 802.1Q VLAN tagged packets
  • Provides Far End Fault function on FX (fiber) port
  • Low power consumption
  • Supports DIN rail mounting and wall mounting
  • LEDs: Power status, TP speed, TP Link/Activity, FX Link/Activity
  • Packet Size: Up to 1536 bytes
  • Operating temperature.: 0 ºC - +50 ºC
  • Storage Temperature: -30°C ~ 80°C
  • Relative Humidity: 5% ~ 95% non-condensing
  • DC Input via external power adapter


ManufacturerROLINE
Product groupNetwork converters
Product typeMedia Converter
Colourblack
Scope of deliveryMedia Converter, Power supply unit, USB power cable, Inst...
RJ-45 Port (Mbps/s)100
Fibre Ports (Mbps)100
Quantity of RJ45 ports1
Quantity of fibre SC ports1
Converts toRJ-45/SC
FibreMultimode
Ethernet fibre standard100Base-FX
Operating temperature min.0 °C
Operating temperature max.50 °C
Height59 mm
Width64 mm
Depth21 mm
Weight150 g
Height of packaging (single piece)60 mm
Width of packaging (single piece)150 mm
Depth of packaging (single piece)150 mm
Package weight (single piece)0.3 kg
Current catalog editionC24-New.02
